Renkforce RF500 Maker Construction Kit - Page 82

82

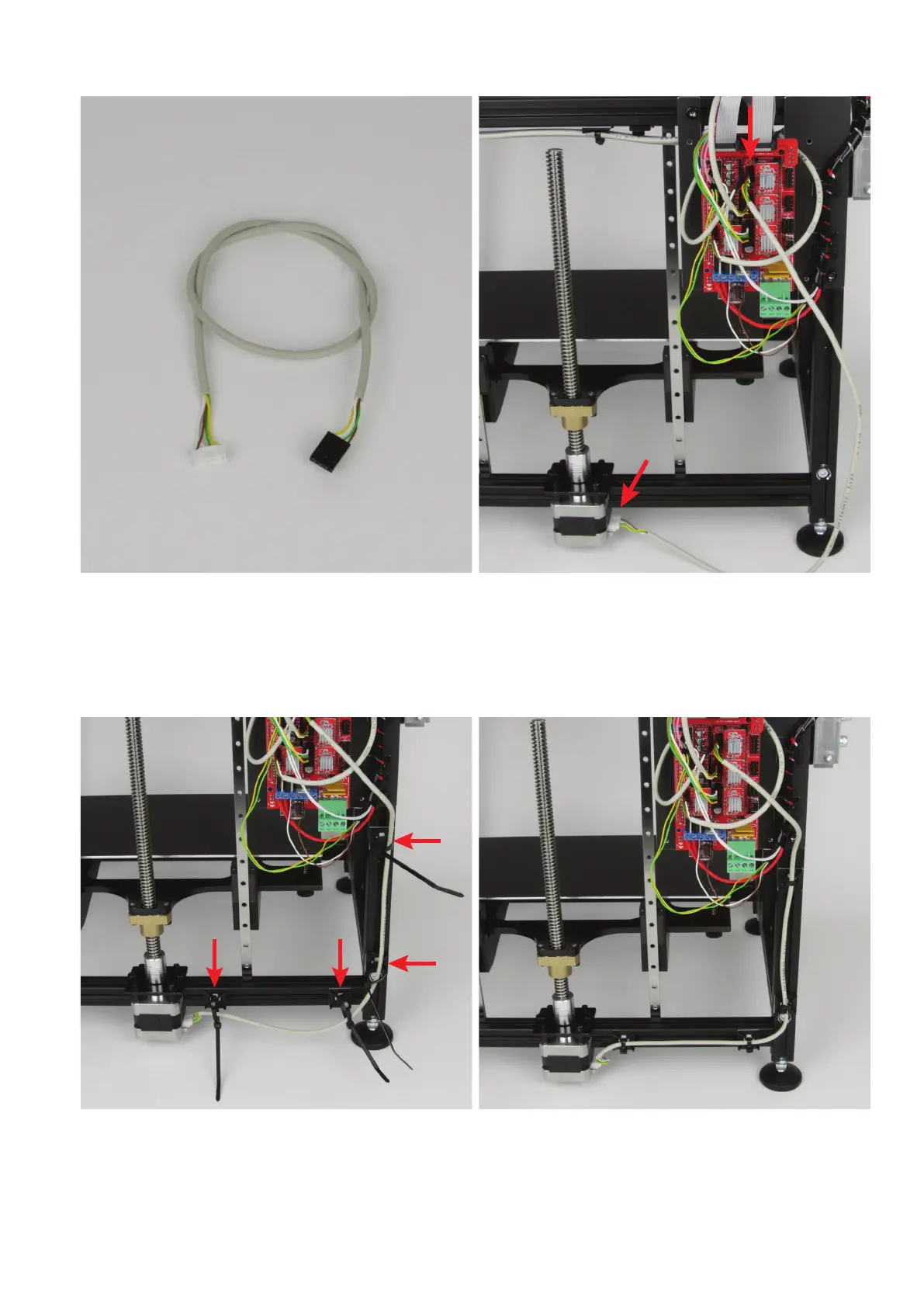

ConnectionofthemotorfortheZ-direction
1x cable 07 approx. 500 mm
Do not swap the cable with cable 06, since it is only 50 mm shorter
and almost identically assigned.
Connect the 6pin plug to the Z-motor.
Connect the 4pin plug to the connection marked in the connection
plan with "MotorZ". The pin with the brown line must be at the top.
Takethe4adhesivesocketsand4cableties(142mm)andfasten
the cable as illustrated.
Degreasetheadhesiveareasrst.
Place the cable cleanly and tighten the 4 cable ties.
