9-8 MKD090 Synchronous Motors MKD
19.05.2004 Version7.0 DOK-MOTOR*-MKD*******-PR07-EN-P
Housing overtempeature
60K
Insulated structure
Winding overtempeature
100K
Non insulated structure
Stahlplatte
[A]: M
dN
Natural conv. (S1 continuous operation)
[B]: M
dN
Surface cooling (S1 continuous operation)
[C]: M
KB
(S6 intermittent operation)
[1]: HDS to HVR
[2]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 480V
[3]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 440V
[4]: HDS to HVE or DKCxx.3 with a power connection of 3x AC 400V

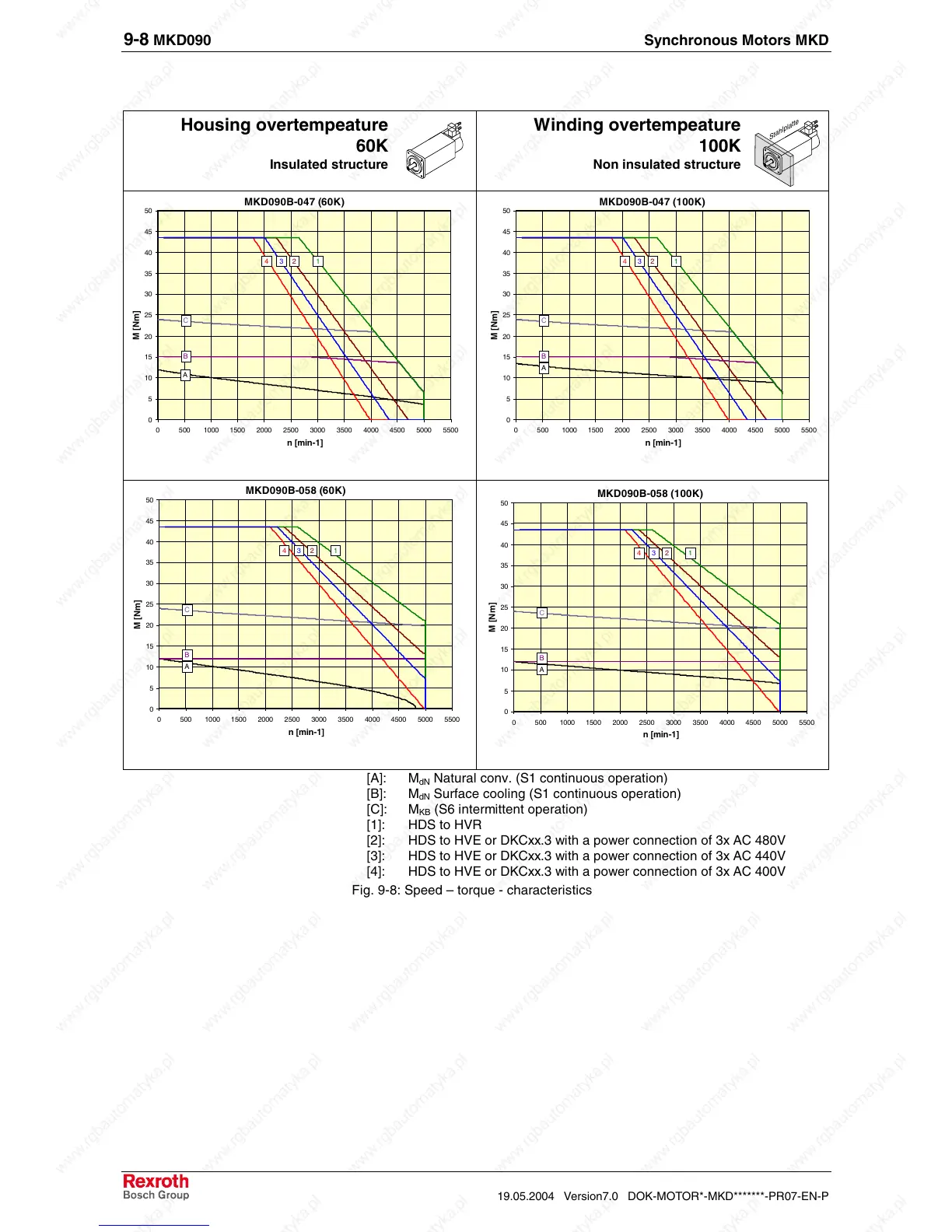

Fig. 9-8: Speed – torque - characteristics
MKD090B-047 (60K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
n [min-1]
M [Nm]
1234
C
A
B
MKD090B-047 (100K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
n [min-1]
M [Nm]
1234
C
A
B
MKD090B-058 (60K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
n [min-1]
M [Nm]
1234
C
A
B
MKD090B-058 (100K)
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500
n [min-1]
M [Nm]
1234
C
A
B
