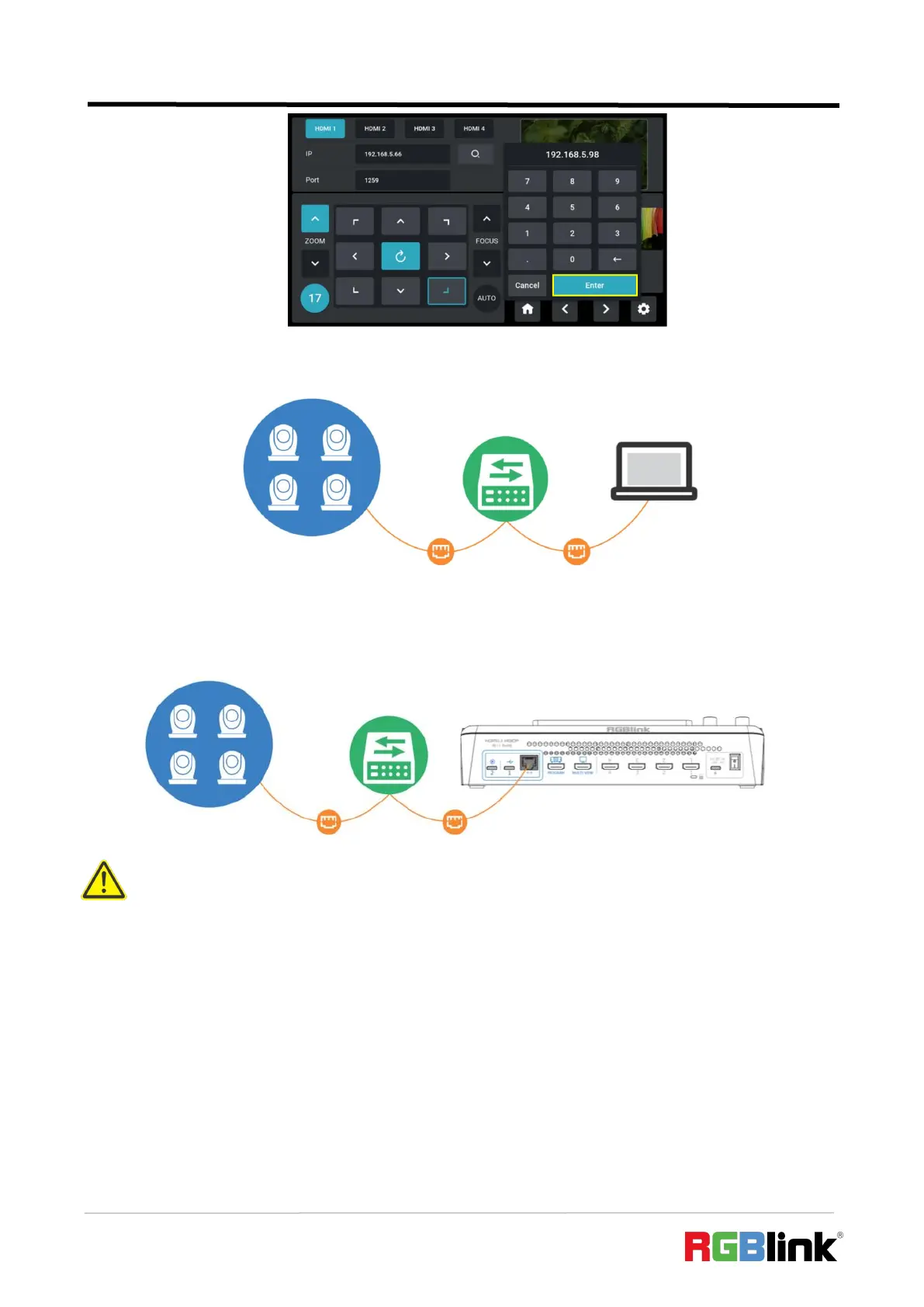

3) Connect camera and computer to the switch.
4) Connect mini-edge and camera to the switch via Ethernet cables (It is recommended to use
RGBlink CAT6 cable with order code as 940-0001-00-11-0). Then use mini-edge for PTZ control.
5) User ENTER knob to select HDMI 1/HDMI 2/HDMI 3/HDMI 4 to switch camera control
interface.
In addition to Manual IP Setting, mini-edge also supports Automatic IP Identification.
Warning:
1. The computer IP, mini-edge IP and the tested IP must be in the same LAN.
2. It is suggested to use ping command to check IP addresses of four cameras one by one to ensure
normal communication.
3. ONLY VISCA via IP protocol is supported. Protocols including NDI PTZ/CGI/HTTP/Pelco-D/Pelco-P are
not supported.
