2.2.1 Vertical pipe mounting
(Only if the flow goes in upstream direction.)
In a vertical pipe any orientation is possible. Make sure you mount the SDM with the display in the correct
position and the cable glands pointing downwards to prevent intruding liquids.

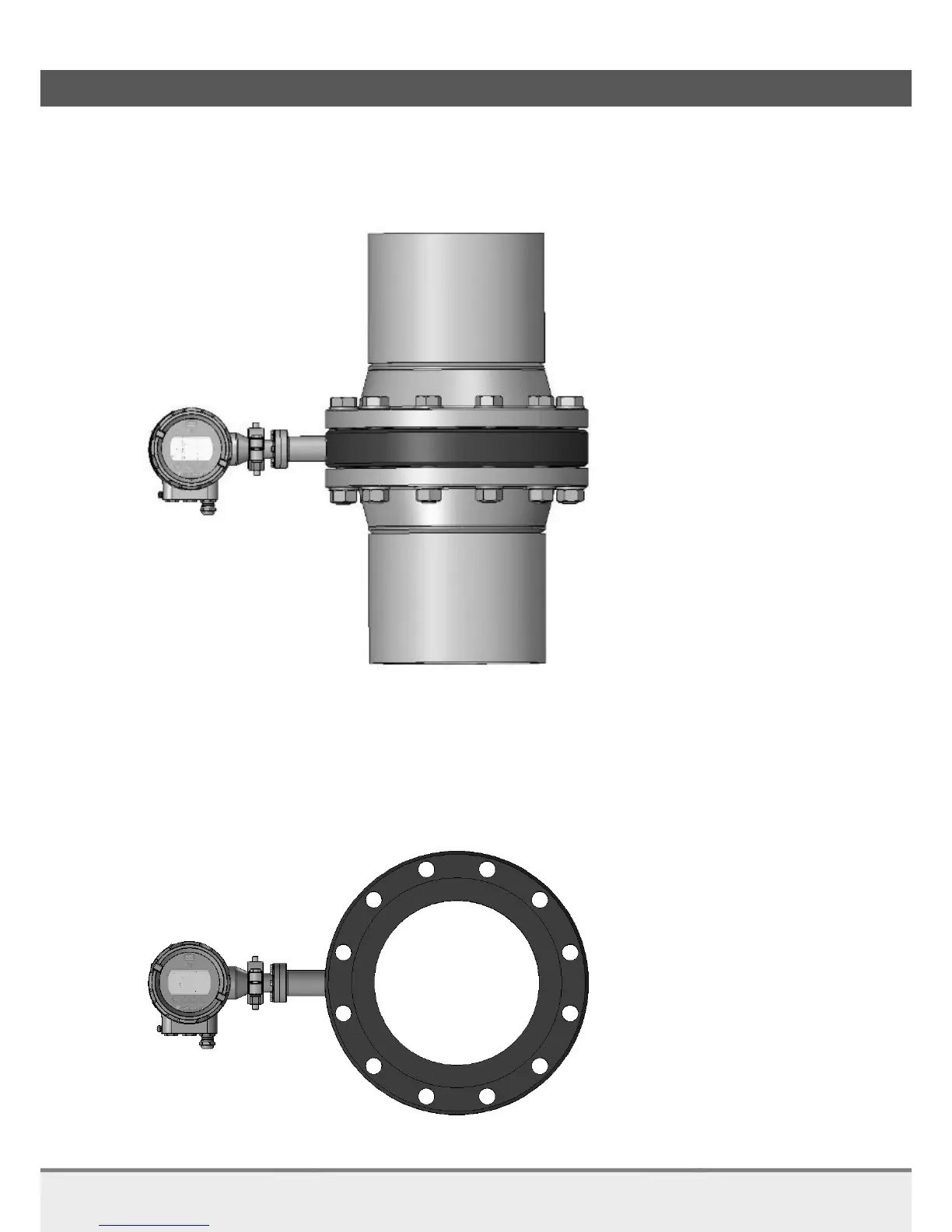

Vertical mounting (i.e. wafer)
2.2.2 Horizontal pipe mounting
Some considerations need to be taken into account in case of installation in a horizontal pipe.
The preferred installation in a horizontal pipe is shown below. The SDM must be installed either on the
left or the right hand side of the pipe.
90° Horizontal pipe mounting (i.e. wafer)
