6. Maintenance
6.1 Replacing / mounting a sensor

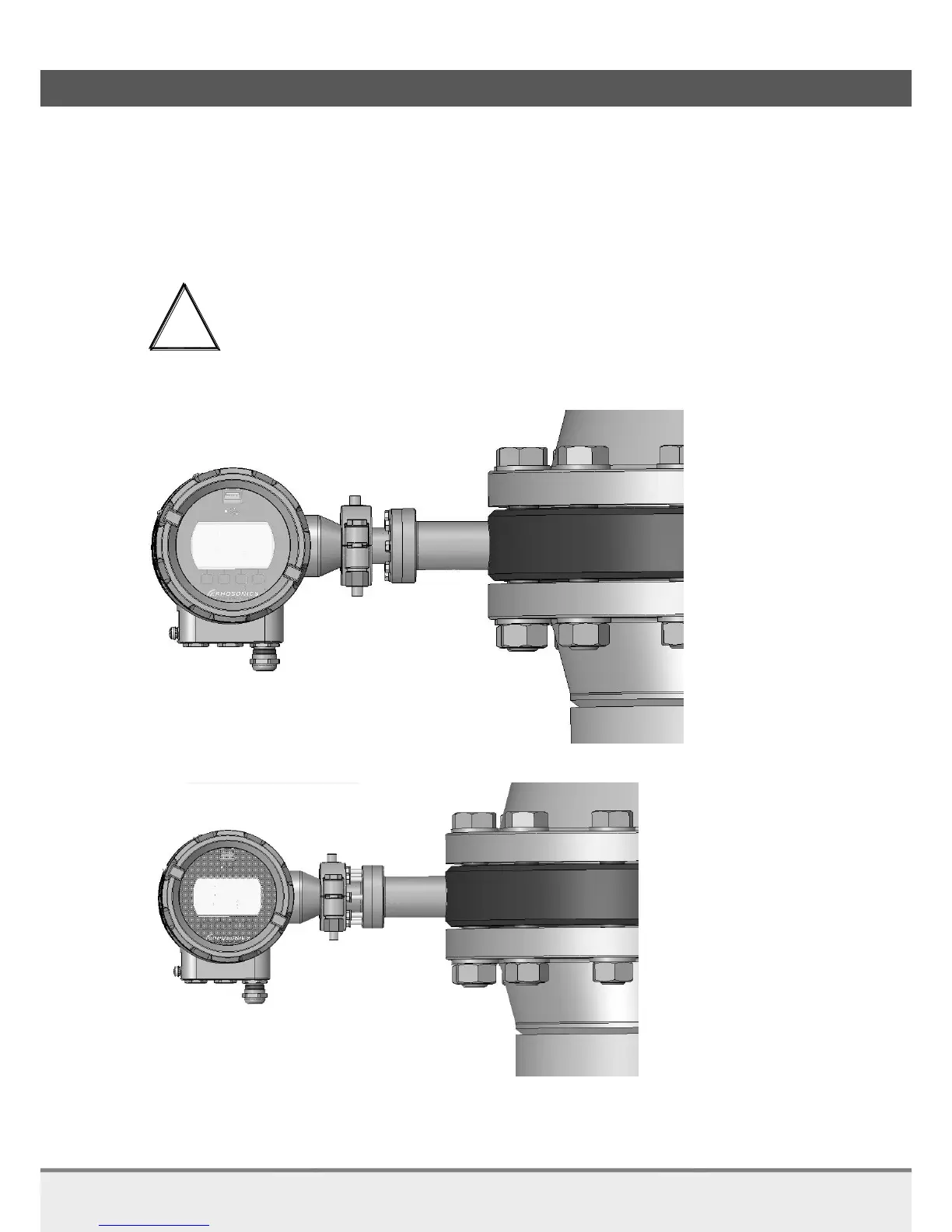

Dismounting in black
Mounting in blue
Please make sure you follow this procedure. Deviating (dis)mounting procedure can damage the SDM
beyond repair, especially the spring loaded contacts in the sensor part.
Sensor mounted in wafer/spool/weldolet
Dismounting: Untighten 8 M5x16 bolts / Mounting: tighten bolts with 4.2 Nm
