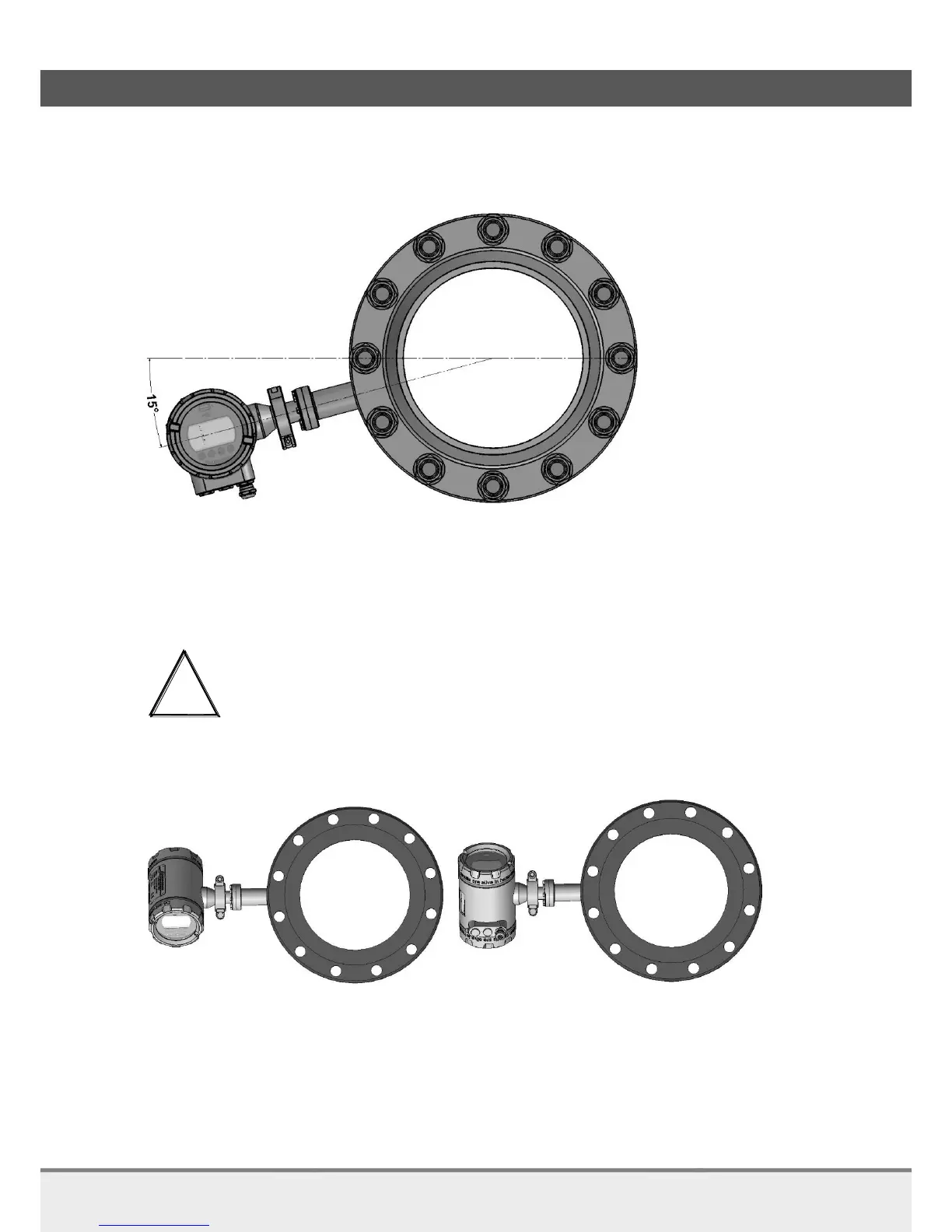

Maximum tolerance is 15⁰ from the horizontal line (downwards) as shown below.
105° Horizontal pipe mounting (i.e. wafer)
2.2.3 Analyzer head rotation
The analyzer head can be rotated in any position (360°). Below some examples are shown.
Please make sure you will be very careful with rotating the housing. If not handled properly you can
damage the SDM beyond repair, especially the spring loaded contacts in the sensor part. See also chapter
6.
Different housing positions
