Rhosonics SDM-4 - Configure 4-20 Ma Output

SDM – Slurry Density Meter
41 www.rhosonics.com
CONFIGURATION

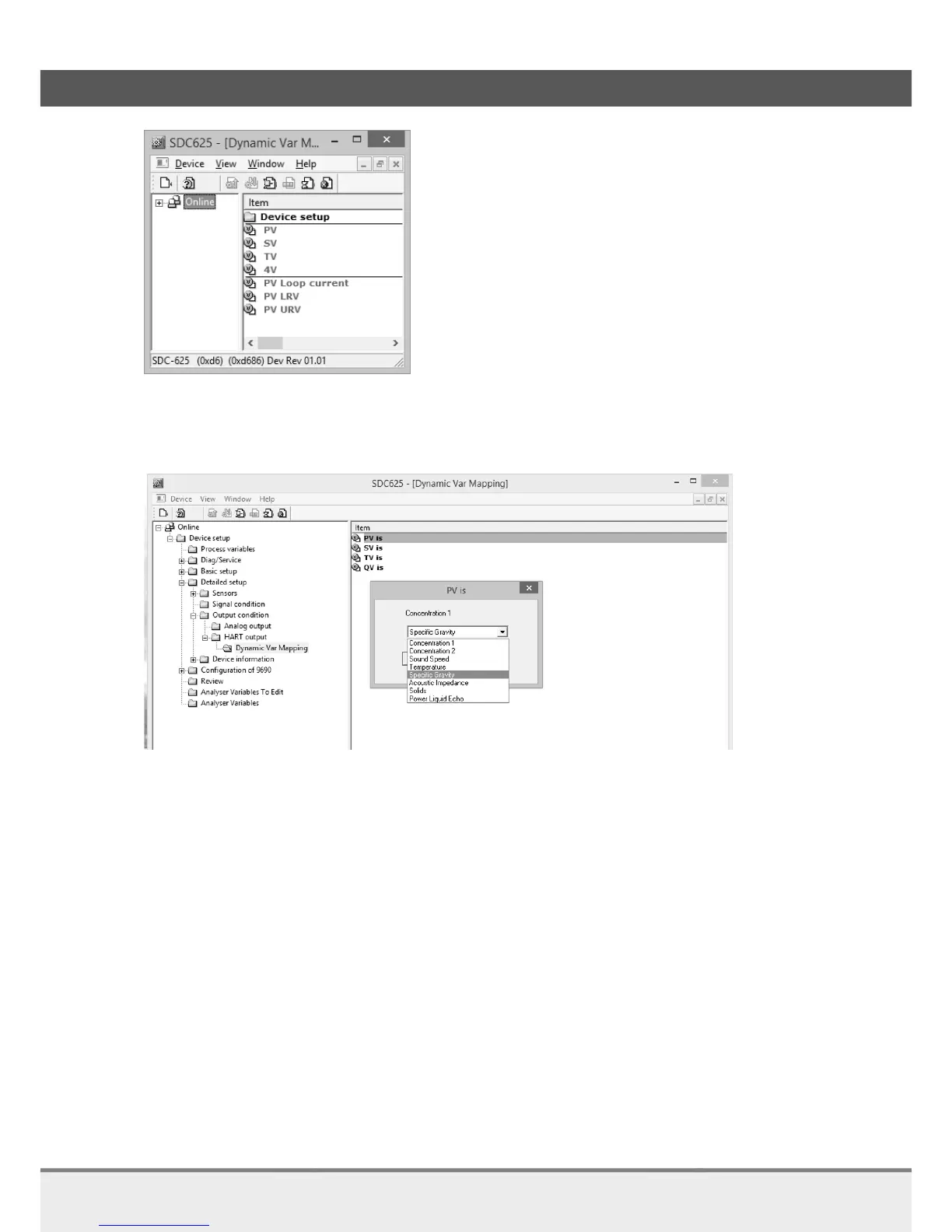

SDC625 Map structure (start)
 Open Map Dynamic Var Mapping (OnlineDevice Setup  Detailed setup  Output condition
 HART output  Dynamic Var Mapping)
 Double click PV is, SV is, Tv is or QV is
PV is setting in map Dynamic Var Mapping
 Choose variable for PV is, SV is, TV is and QV is
4.3.2 Configure 4-20 mA Output
This procedure is to specify the 4-20 mA Output.
 The PV LRV (Primary Variable Lower Range Value) correspond to 4 mA
 The PV URV (Primary Variable Upper Range Value) correspond to 20 mA
 The PV Alrm typ (Primary Variable Alarm Type) is the Error reaction mode
 The Loop current mode has to be Enabled (Disabled is Multidrop-mode)
 The Loop test sets the output to a set value
 The D/A trim trims the low and high value on digital level
