CONFIGURATION
Setting Low and High value

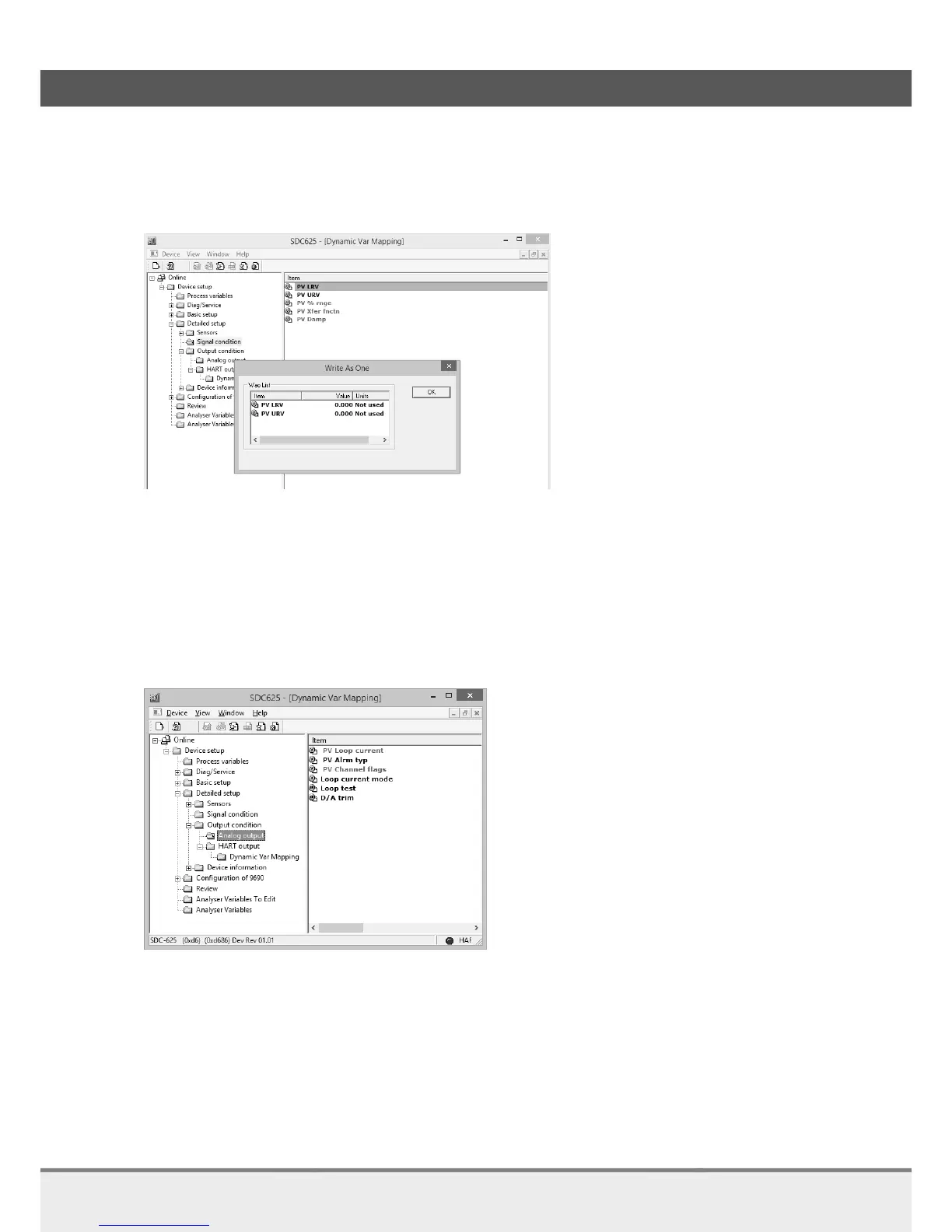

 Open Map Signal condition (OnlineDevice Setup  Detailed setup Signal condition)
 Set value for PV LRV (i.e. SGx1000 = 800)
 Set value for PV URV (i.e. SGx1000 = 1800)
Low and High value 4-20 mA output
Setting Analog output condition
 Open Map Signal condition (OnlineDevice Setup  Detailed setup Output
conditionAnalog output)
 Set mode for PV Alrm typ (choose from Hi, Lo, Hold last value or None)
 Set Loop current mode to Enabled
 Use D/A trim to fine-tune the 4 mA and 20 mA value digitally. After this trim a power down and
power up must be done.
Analog output condition
