o SDM-2: Weldolet for 34 mm sensor tip, see chapter 2.4
o SDM-3: Weldolet for 52 mm sensor tip, see chapter 2.4

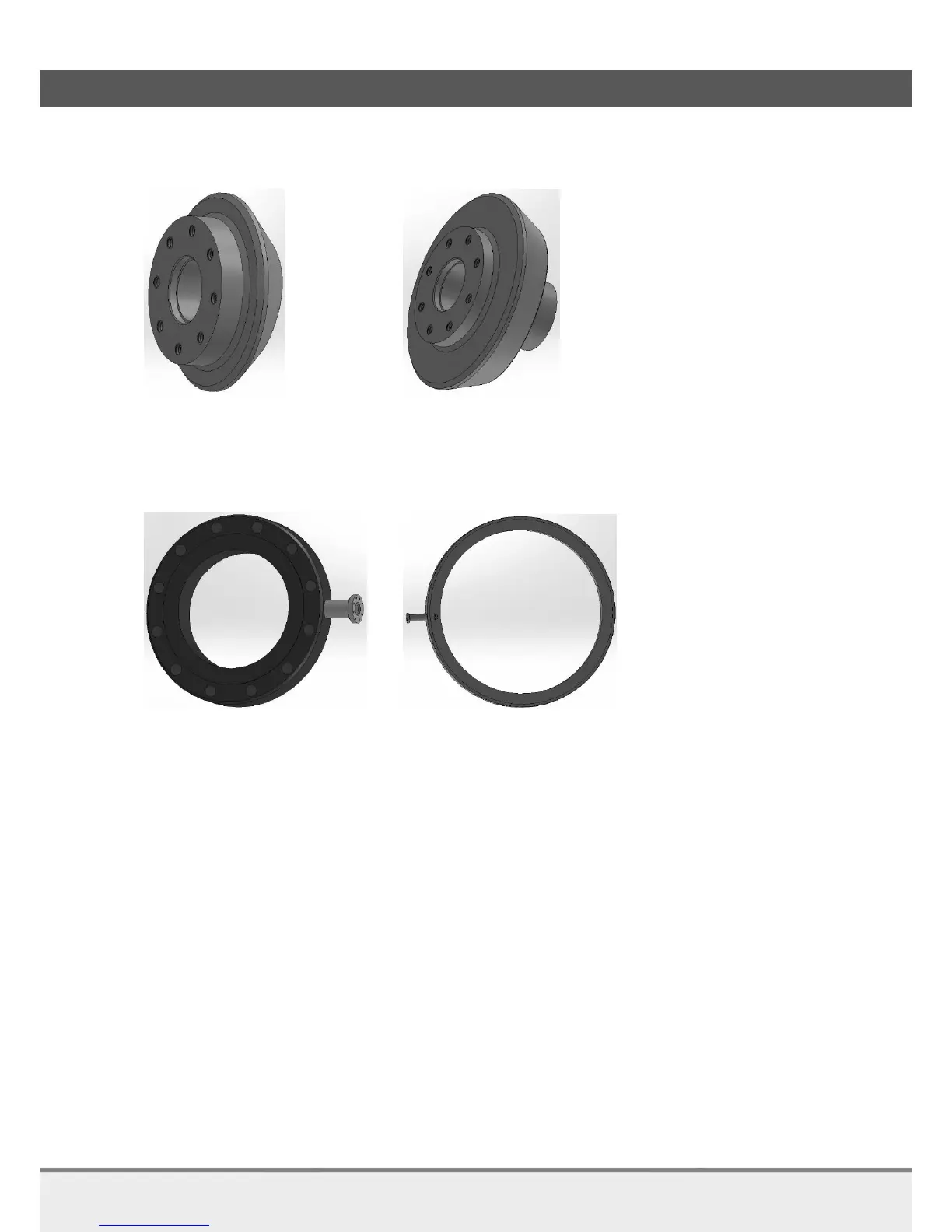

SDM-2 Weldolet 34 mm tip SDM-3 Weldolet 52 mm tip
o SDM-4: Wafer (UHMWPE or metal) for 146 mm sensor tip, see chapter 2.5
o SDM-5: Wafer (UHMWPE or metal) for 200 mm sensor tip, see chapter 2.5
SDM-4 wafer 146 mm tip SDM-5 wafer 200 mm tip
2.2 Selecting the SDM location
The following guidelines apply to all SDM:
Install the SDM with 5xD length of straight pipe length upstream and 3xD of straight pipe length
downstream.
Avoid installation in a pipe section where the SDM tip may wear fast
Avoid installation near dosing valves.
Vertical pipe installation is preferred when the flow goes in upstream direction, see chapter
2.2.1.
Horizontal pipe installation: Sensor must be installed sidewise, see chapter 2.2.2.
