SDM – Slurry Density Meter
8 www.rhosonics.com

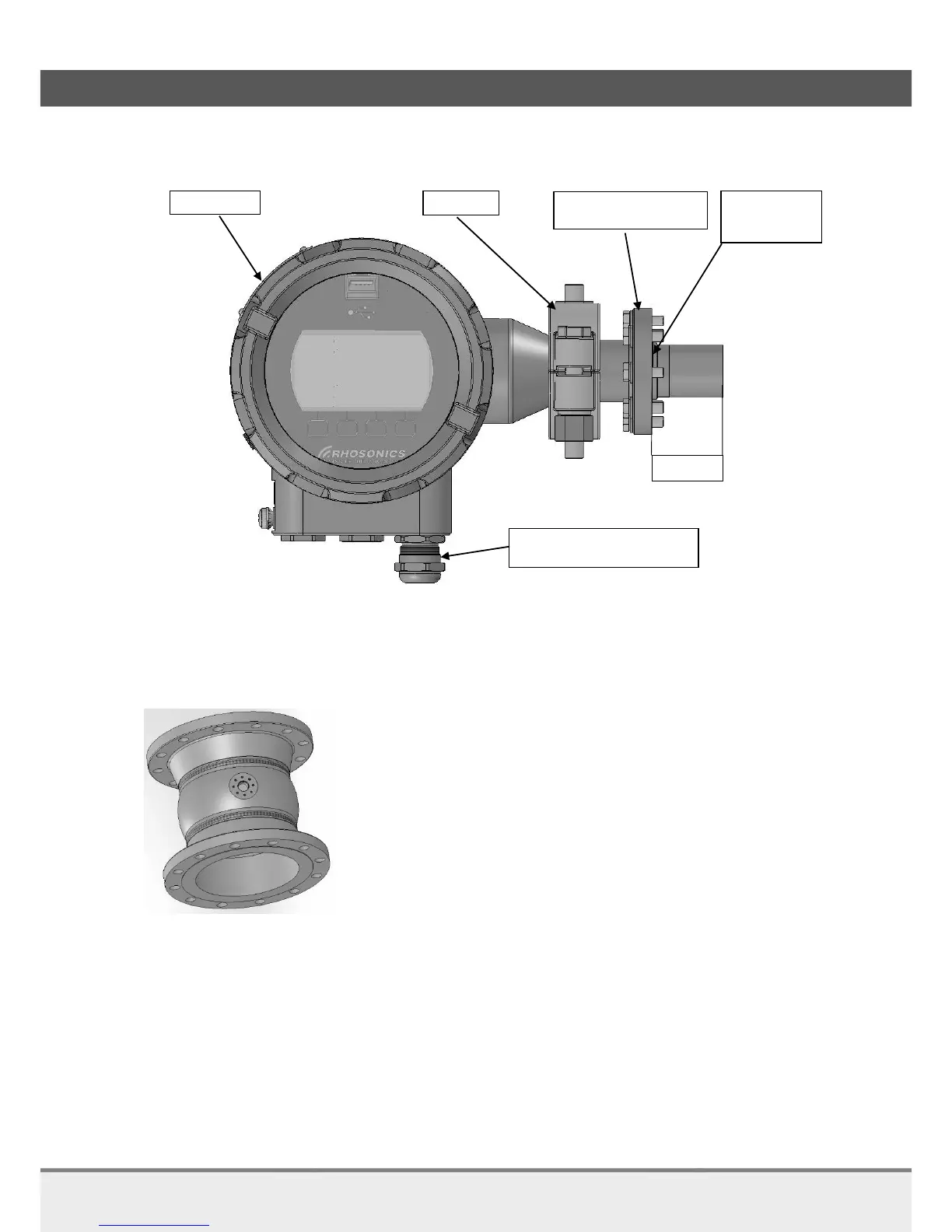

INSTALLATION
A density SDM system consists of the following components:
 SDM (included mounting hardware to the adapter)
SDM, split version (e.g. 52 mm tip)
 Process entry hardware for SDM
This adapter exist in five different types:
o SDM-1: Spool for 16 mm sensor tip, see chapter 2.3
SDM-1 Spool 16 mm tip

Mounting flange to
weldolet, wafer or spool
O-ring sealing
(not visible in
this drawing)
SDM housing
Cable entry cable gland(s) or
blind stop(s). Standard: M16x1.5
Tip length
Triclamp
