14 June, 2002 BYPASS FEEDER UNIT
3-41
Replacement
Adjustment
3.9 BYPASS FEEDER UNIT
3.9.1 DISASSEMBLING THE BYPASS FEEDER UNITS

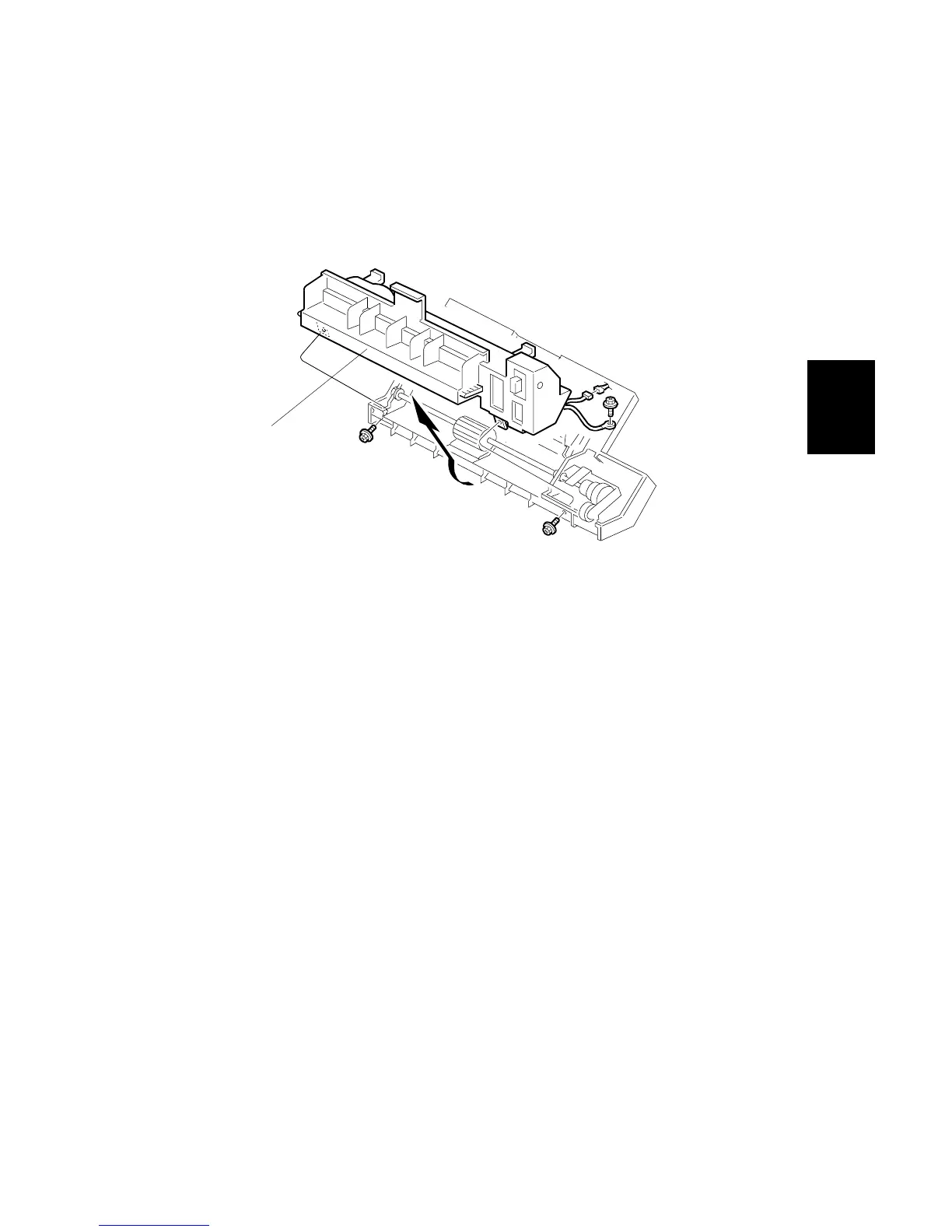

1. Remove the unit [A] (! x 2, " x 1, 1 grounding wire)
H310R030.WMF
[A]
