4. Disconnect the sensor and remove it ( x1, x3).
Exit Sensor
Preparation
• Remove the front cover ( x2).

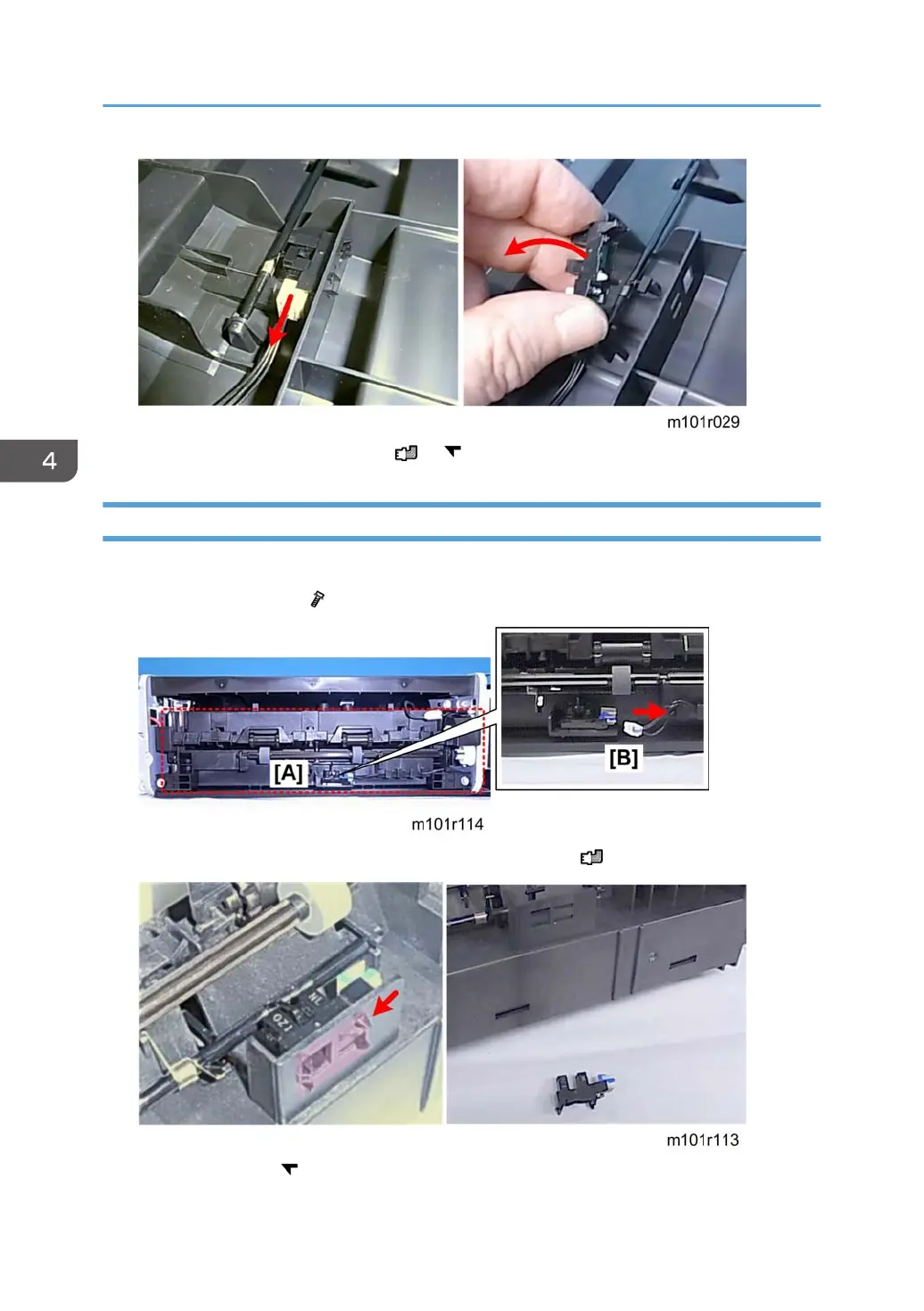

1. On the front of the fusing unit [A], disconnect the exit sensor [B] ( x1).
2. Remover the sensor ( x3).
