1. When you re-install the board, be sure to re-connect the ground wire at the upper left corner of the
main board.
2. If the main board has been replaced, be sure to do the procedures for after replacing a main
board.( p.130 "After Replacing the Main Board")
M102 Main Board
Preparation ( p.50 "M102 Covers, Platen Cover, Flatbed Unit")
• Front cover
•
Right cover

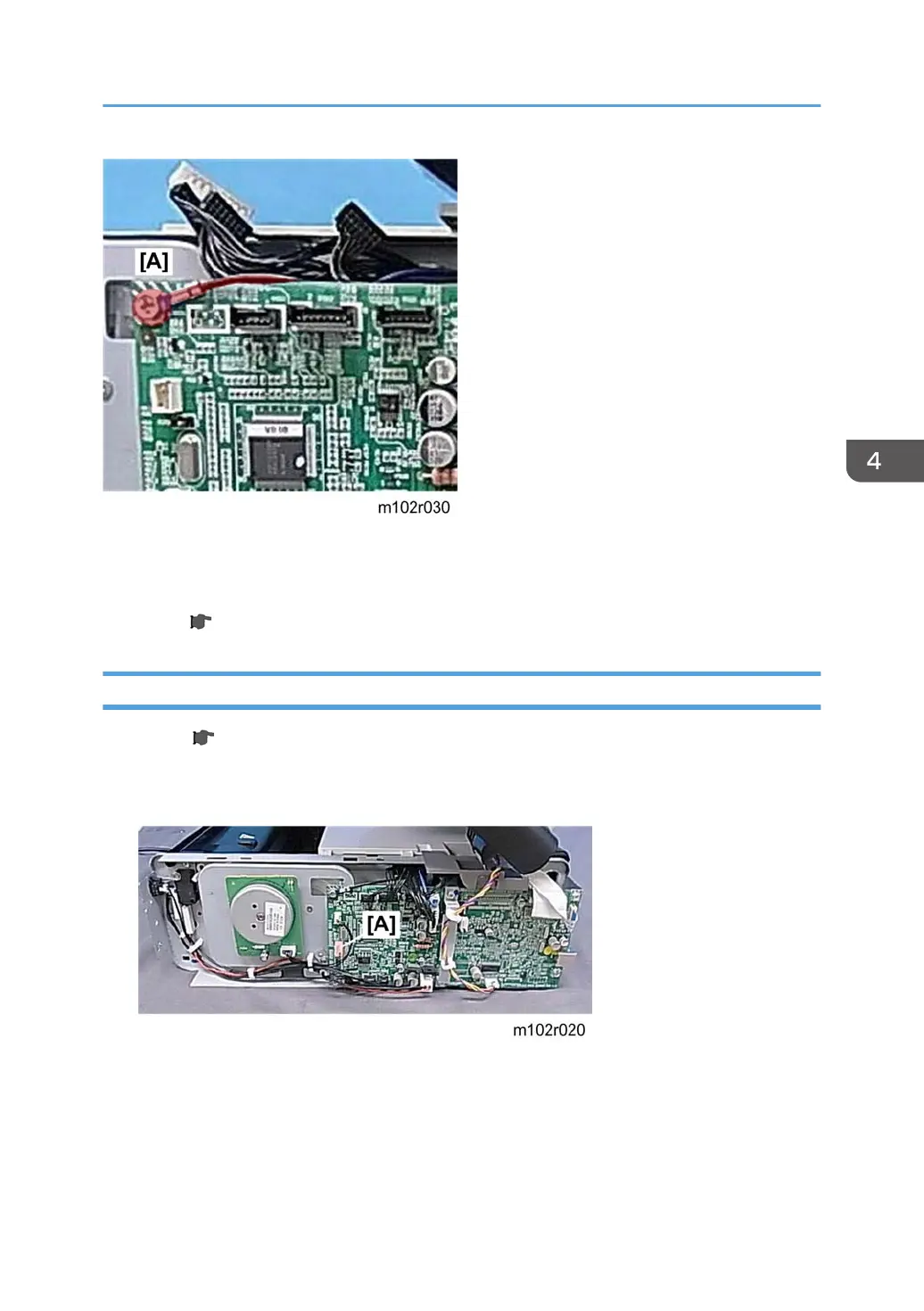

1. Before you begin, note that there is no connector at [A].
