System tab. The features that configure the system settings.
Printer tab. The features that configure the printer settings.
Copy tab (M102/M103 only). The features that configure the copy settings.
Fax tab (M103 only). The features that configure the fax settings.

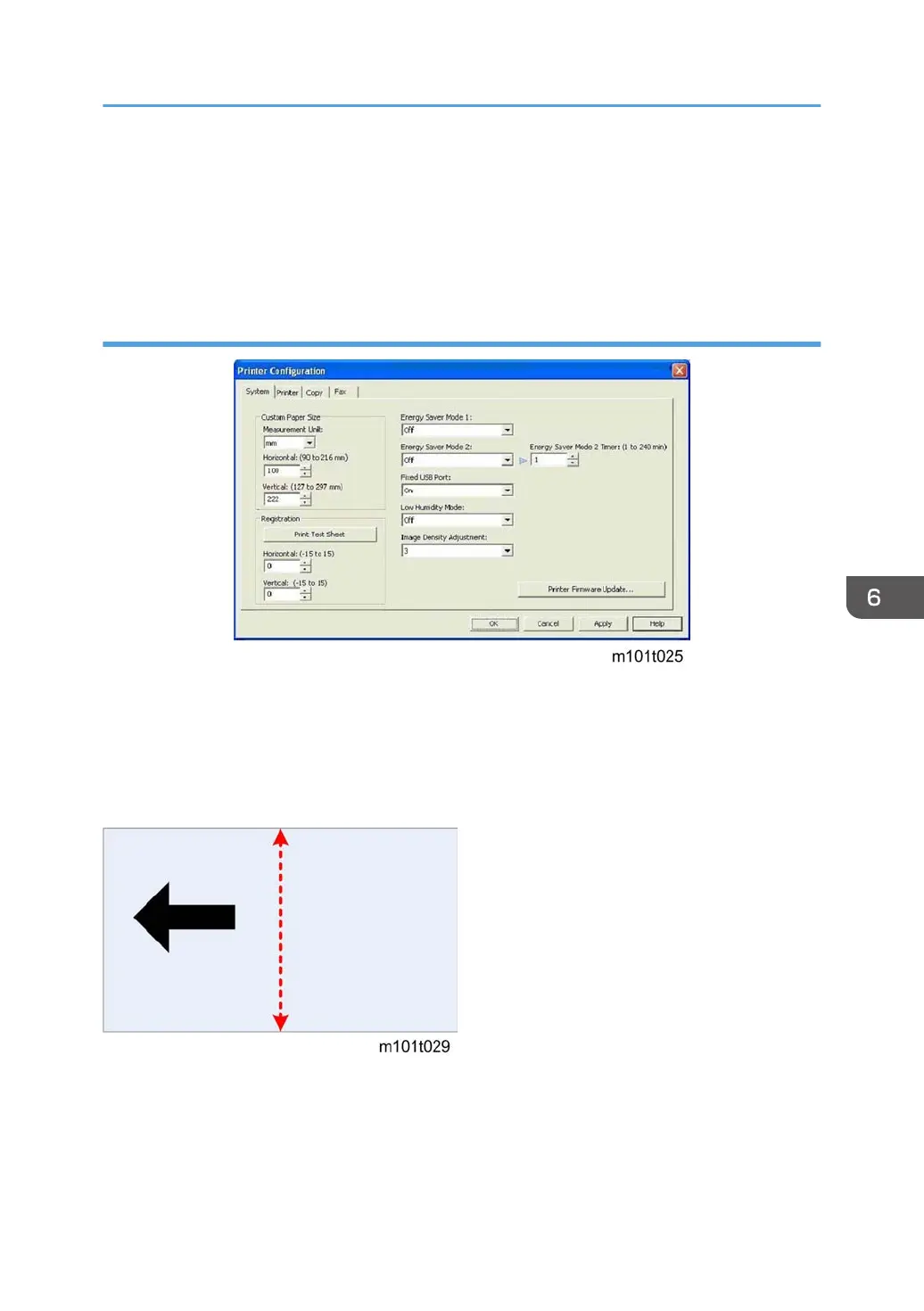

System Tab
Custom Paper Size
• Measurement Unit. Select either mm or inch for the entries into the Horizontal and Vertical boxes
below.
• Horizontal (90 to 216 mm). Enter the size of the paper that is vertical relative to the feed direction
of the machine.
Width Range: 90 to 216 mm (3.54 to 8.5 inch)
Adjustment: 1 mm or 0.01 inch steps
• Vertical (127 to 297 mm). Enter the size of the paper that is horizontal relative to the feed direction
of the machine.
Utilities
165
