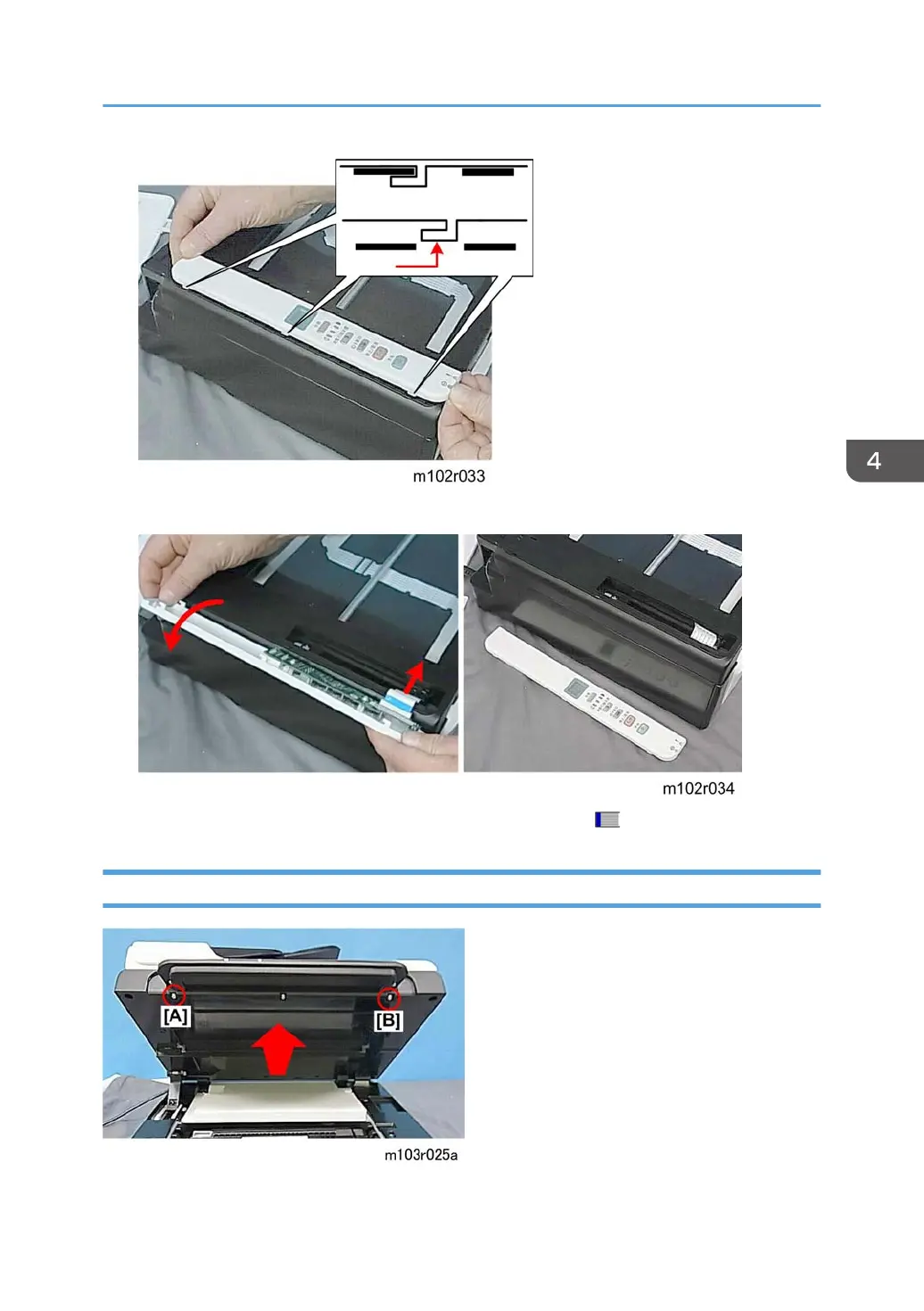

3. Lift the operation panel straight up to disconnect the hooks at three points.

4. Turn the operation panel over, and then disconnect the flat cable ( x1).

M103 Operation Panel

Operation Panels

79
