Ricoh Aficio SP 100SF - Page 82

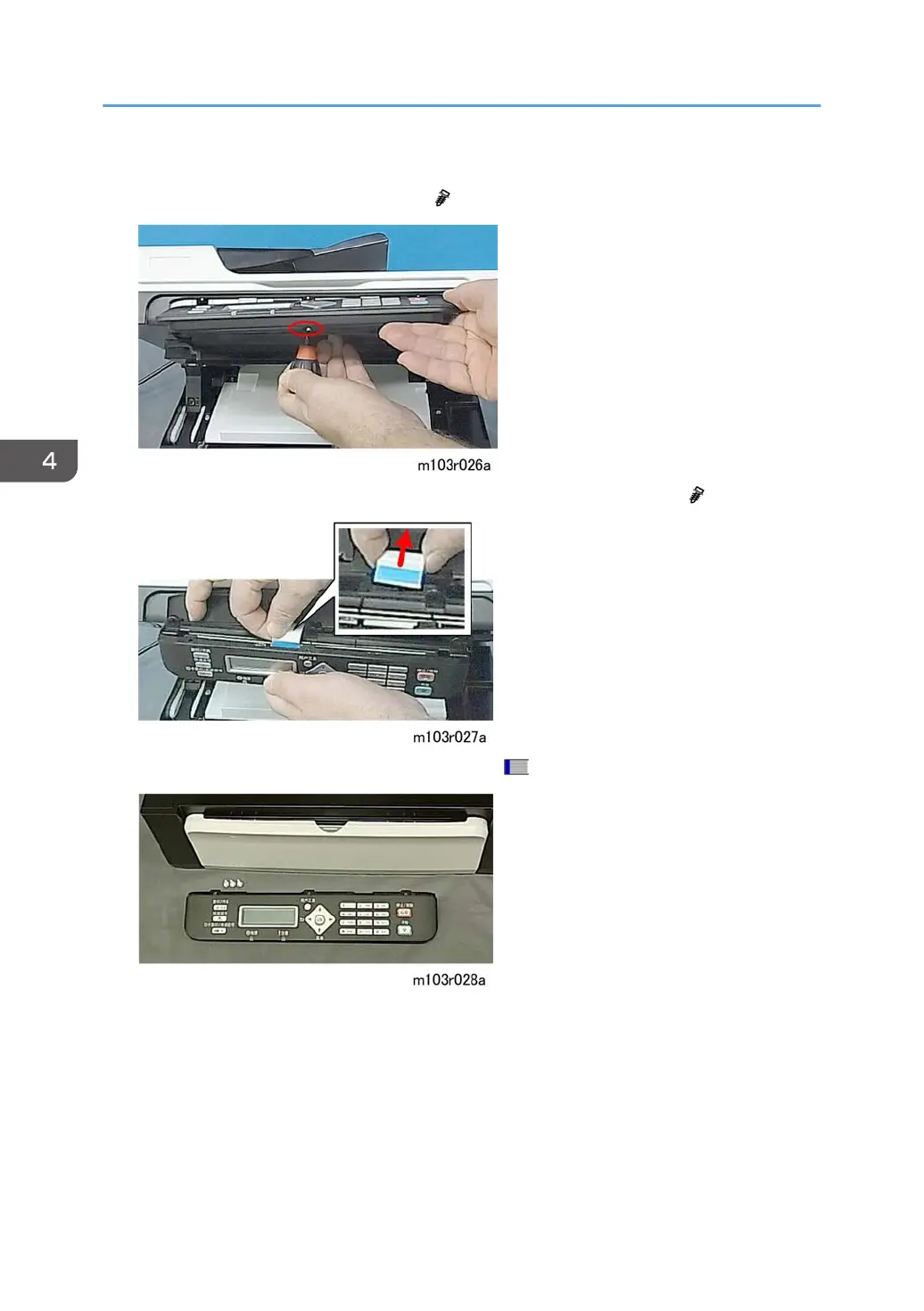

1. Raise the ADF and flatbed unit.
2. Remove left screw [A] and right screw [B] ( x2).
3. While supporting the operation panel with one hand, remove the center screw ( x1).
4. Lower the operation panel slightly and disconnect it ( x1).
4. Replacement and Adjustments
80
