Ricoh Aficio SP 100SF

New Product Information
Series Machines Compared
General Differences
This service manual applies to three machines in the same series.
Name Abbrev. Model No.
Aficio SP 100 P M101
Aficio SP 100SU TiO M102
Aficio SP 100SF FiO M103
The abbreviated notations in the second column above are used in the operating instructions to
distinguish the machine models:
• P: Printer only
•
TiO: Three-in-1 (printer, copier, scanner)
• FiO: Four-in-1 (printer, copier, scanner, fax)
• Throughout this manual the machines are referenced by the model numbers only: M101, M102,
M103.

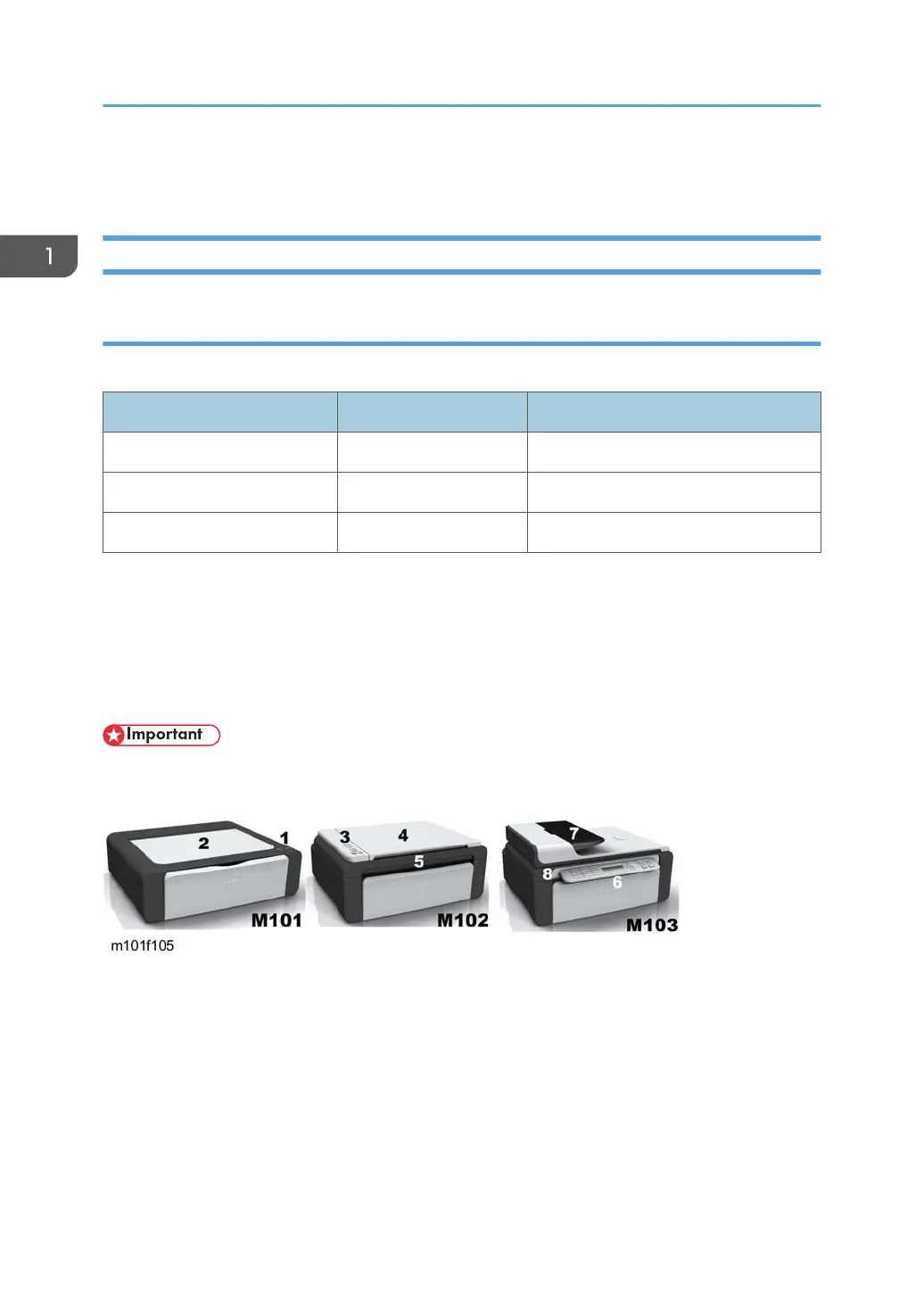

The three machines easily identified by their external appearances.
• The M101 has a very small operation panel (1) on the right with only two buttons and no display.
The top of the machine is covered by a thin maintenance cover (2).
•
The M102 has a larger operation panel (3) on the left with more buttons and a 2-digit display. The
top of the machine is covered by a platen cover (4) and flatbed scanner unit (5).
• The M103 has an operation panel (6) in front with an full array of buttons, a 10-key panel, and a
7-digit display. The top of the machine is covered by a ADF (7) that can hold and feed 15
originals, and a flatbed scanner unit (8).
