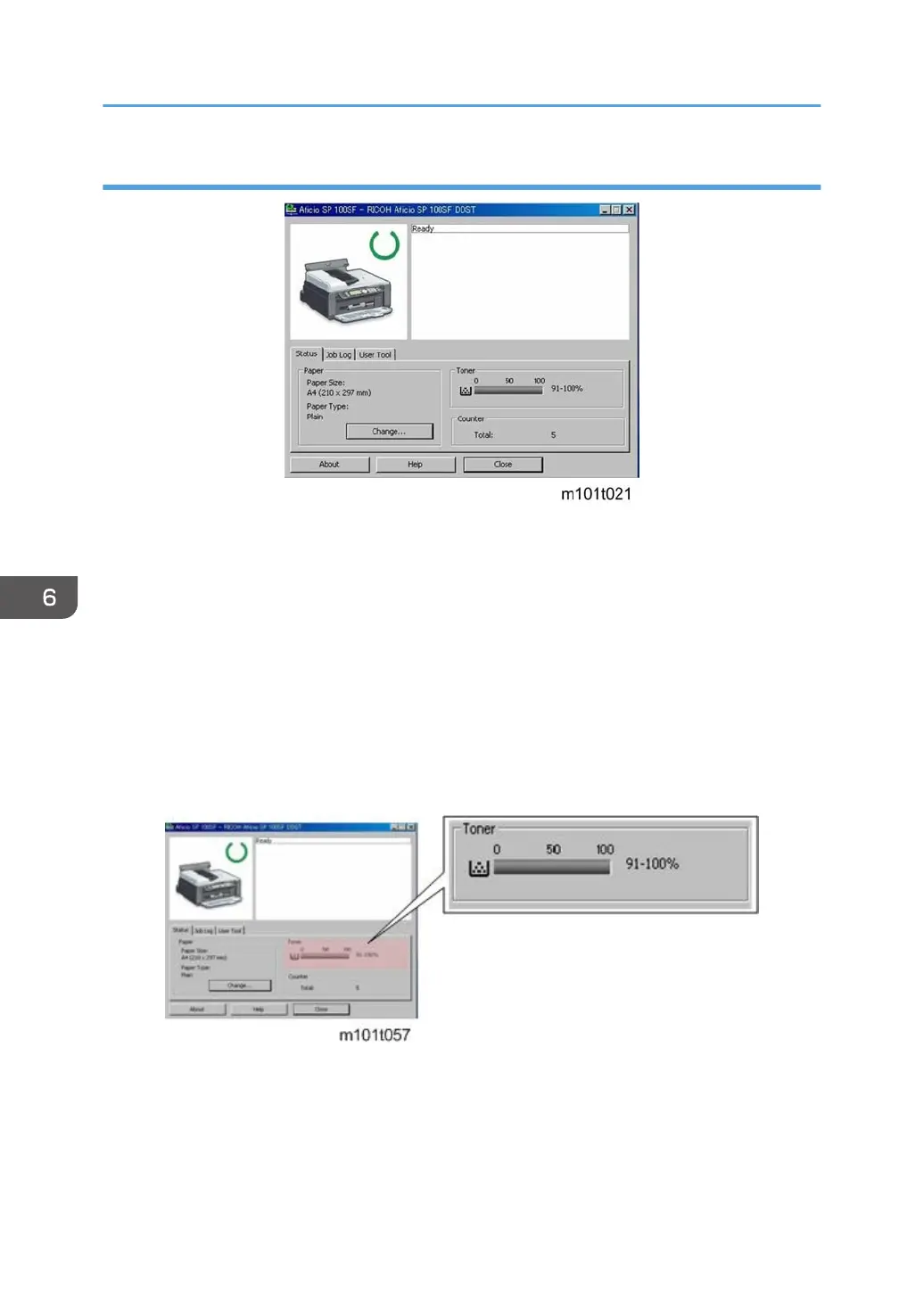

Initial Screen
Image area. The image area on the top left, displays the image of the connected machine.
Message area. The message area on the top right, displays the current status of the machine (Ready,
Energy Saver 1, etc.)
Status tab and area. Indicates the current paper size and type selected for operation.
Change button. Opens the Paper Size/Type Settings dialog box so the operator can choose the paper
size and type to be used in the machine (see below).
Job Log tab. Displays the print job history.
User Tool tab. Presents the Print and Printer Configuration buttons that allow the operator to do test prints
and change the device settings.
Toner. (M103 only) This is the toner count progress bar that shows the progress of toner consumption.
• When the progress bar appears as shown above, the Toner End Option in User Tools is set for
"Stop Printing". The machine will issue a near end alert when the AIO is almost out of toner, and
then stop printing when the AIO is out of toner.
6. Troubleshooting
160
