Ricoh Aficio SP 100SF

Fusing Unit
This section describes how to remove these items:
• Exit Roller
•
Pressure Roller
• Fusing Lamp
• Thermostat
• Thermistor
Separating Fusing Unit
Preparation
• Remove the fusing unit ( p.71)

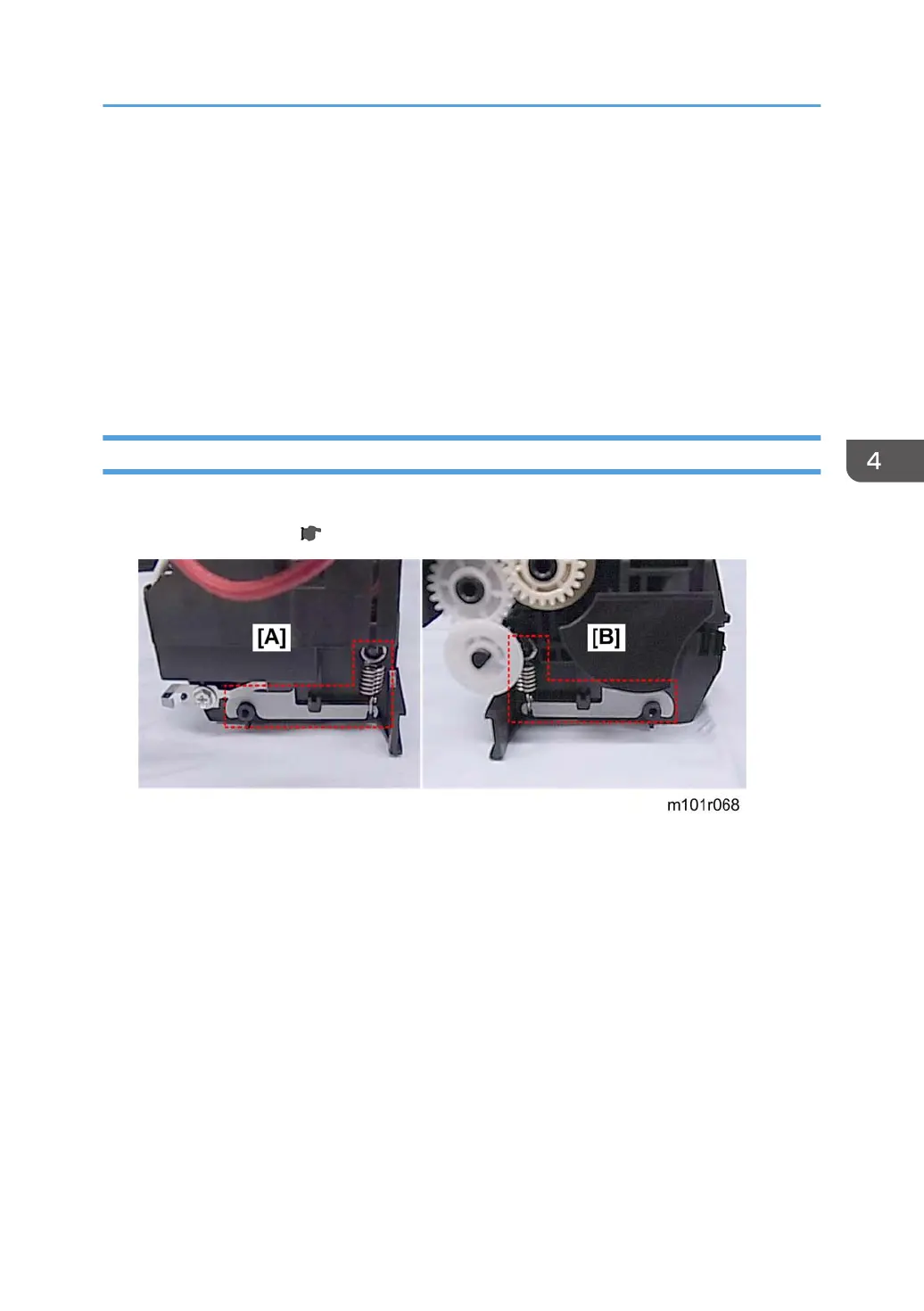

1. Two strong springs on either side of fusing unit [A] left and [B] right keep the soft pressure roller
compressed against the hot roller. These springs must be removed in order to disassemble the
fusing unit.
Fusing Unit
111
