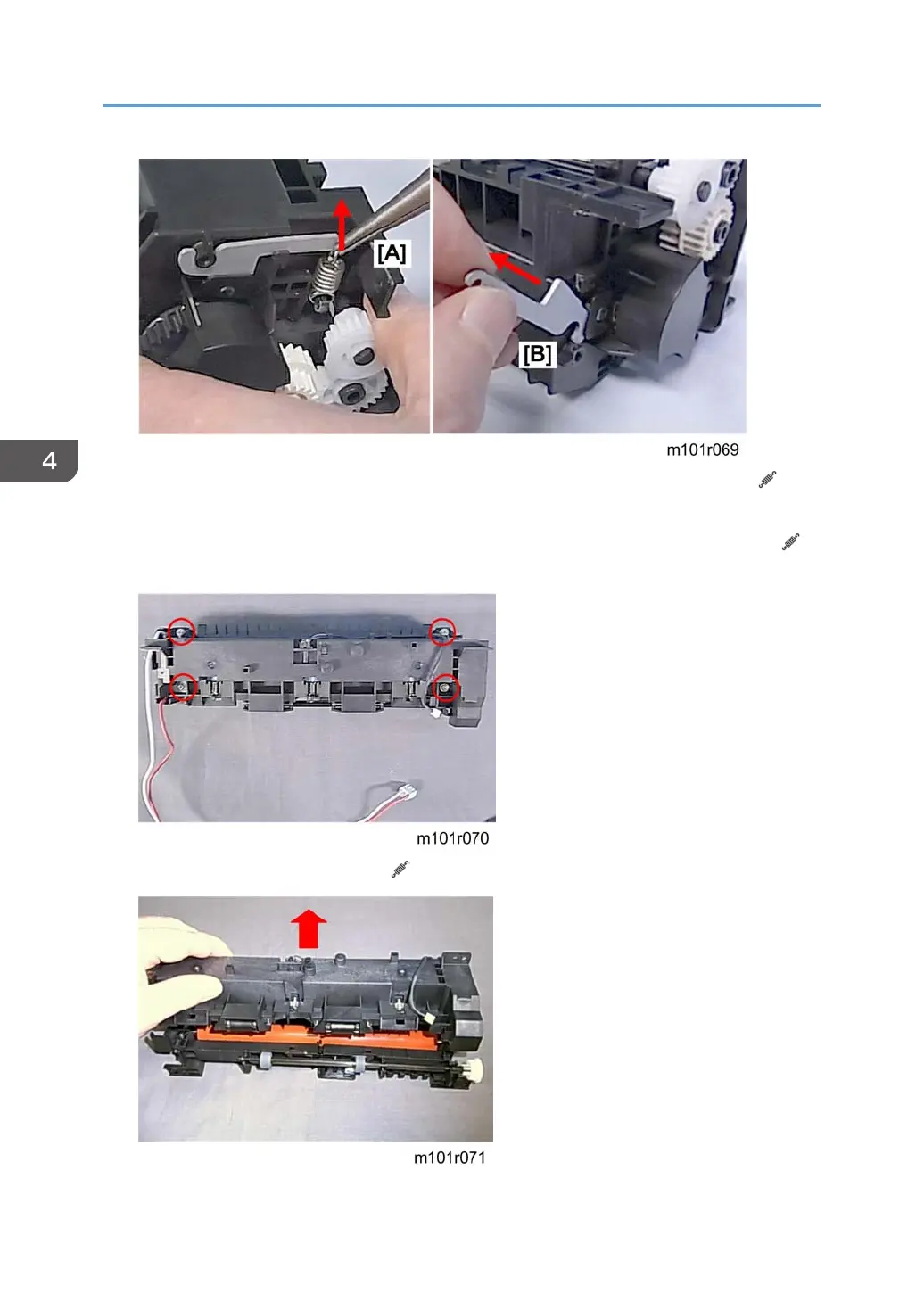

2. Use tip of a pair or radio pliers to remove the spring [A] on the right end of the fusing unit ( x1).
3. Remove the pressure arm [B].
4.
Repeat Steps 2 and 3 to remove the spring and pressure arm on he left end of the fusing unit (
x1).
5. Disconnect the top of the fusing unit ( x4).
6. Lift off the top of the fusing unit.
