Ricoh Aficio SP 100SF

Scanner Motor
Preparation
• Separate flatbed unit ( p.144)

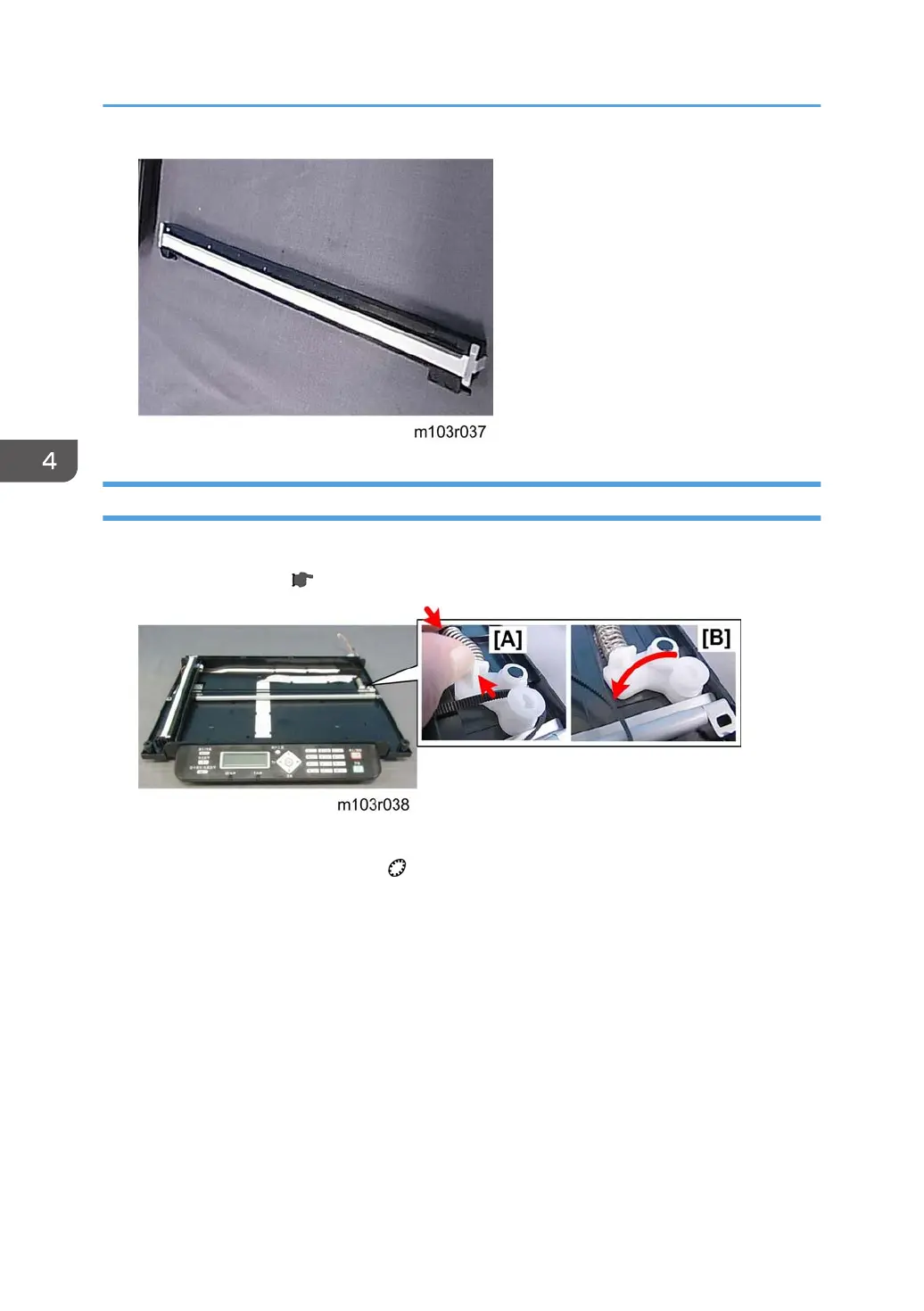

1. Compress both ends of the spring [A] to relieve pressure on the scanning belt.
2. Remove the belt from the pulley [B] ( x1).
