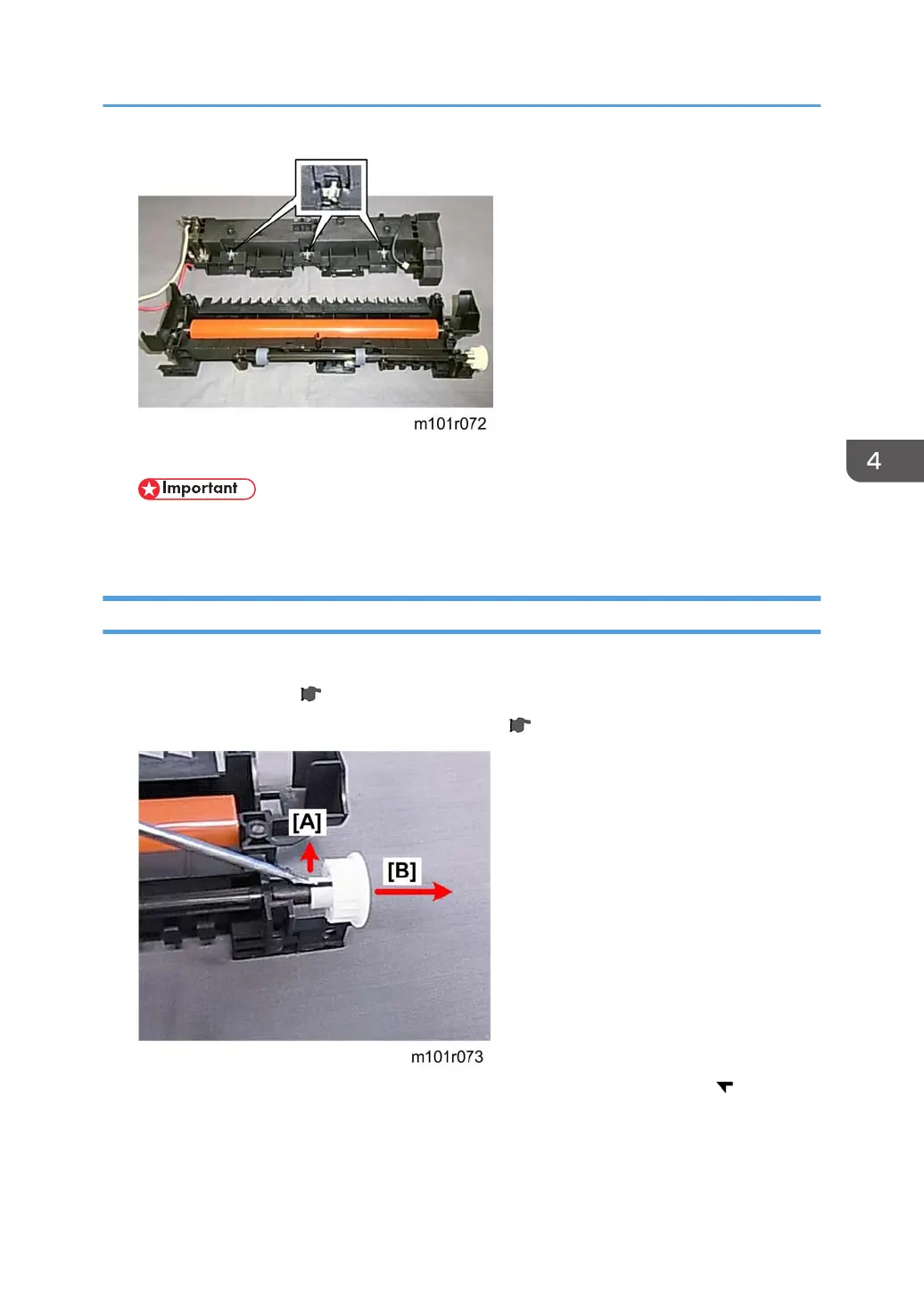

7. Small springs hold the three stripper pawls in place against the hot roller.
• Removing the pawl springs is recommended to prevent the springs or pawls from falling off
and becoming lost.
Exit Roller
Preparation
• Remove the fusing unit ( p.71)
• Separate the top and bottom halves of the fusing unit ( p.111 "Separating Fusing Unit")
1. Use the tip of a small screwdriver to release the lock pawl [A] of the exit roller gear ( x1).
2. Remove the exit roller gear [B].
Fusing Unit
113
