Ricoh Aficio SP 100SF

M102 Operation Panel

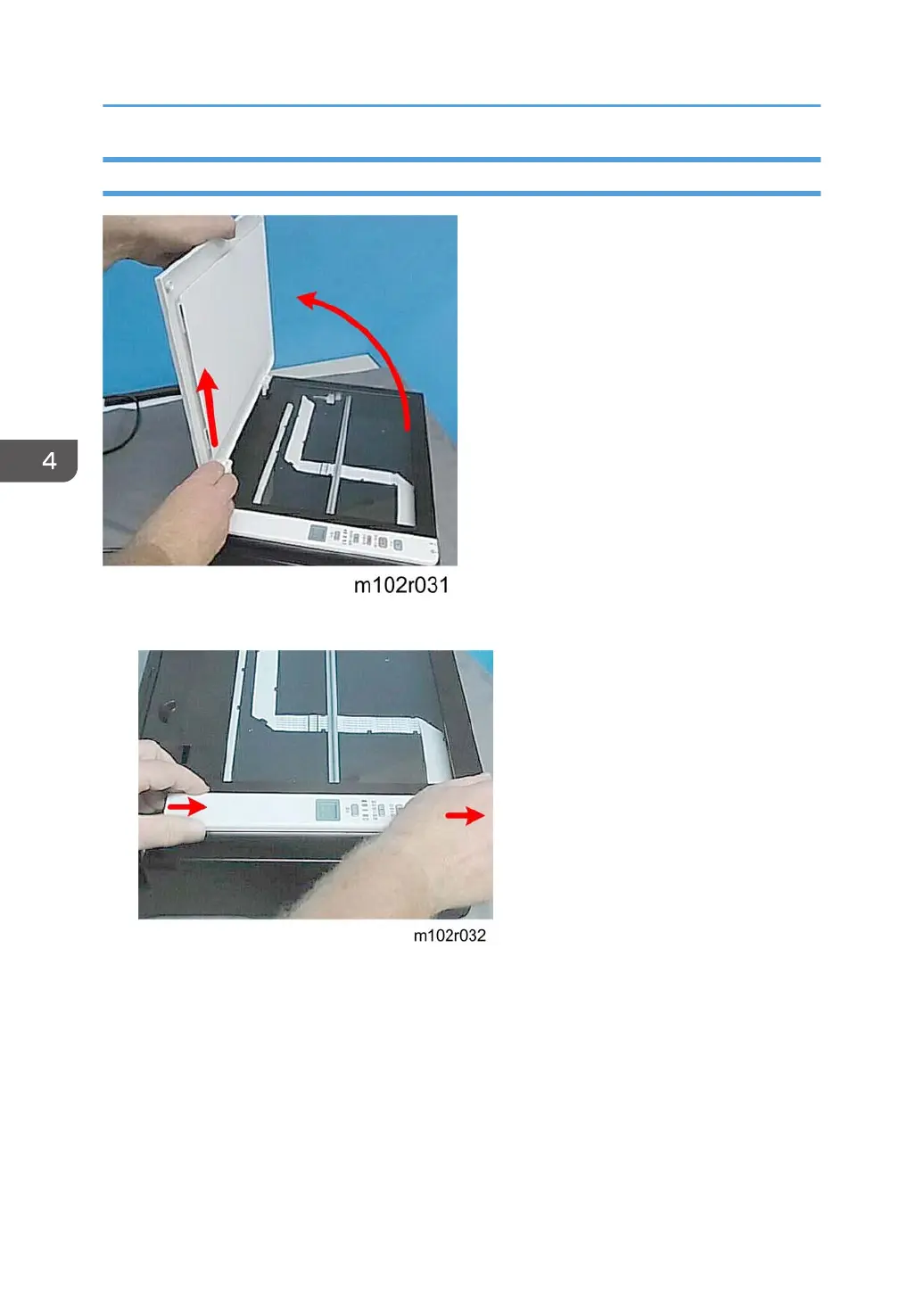

1. Raise the platen and then lift it straight up to remove it.
2. Press firmly on the top edge of the operation panel and push toward the front of the machine until
you hear it click and release.
4. Replacement and Adjustments
78
