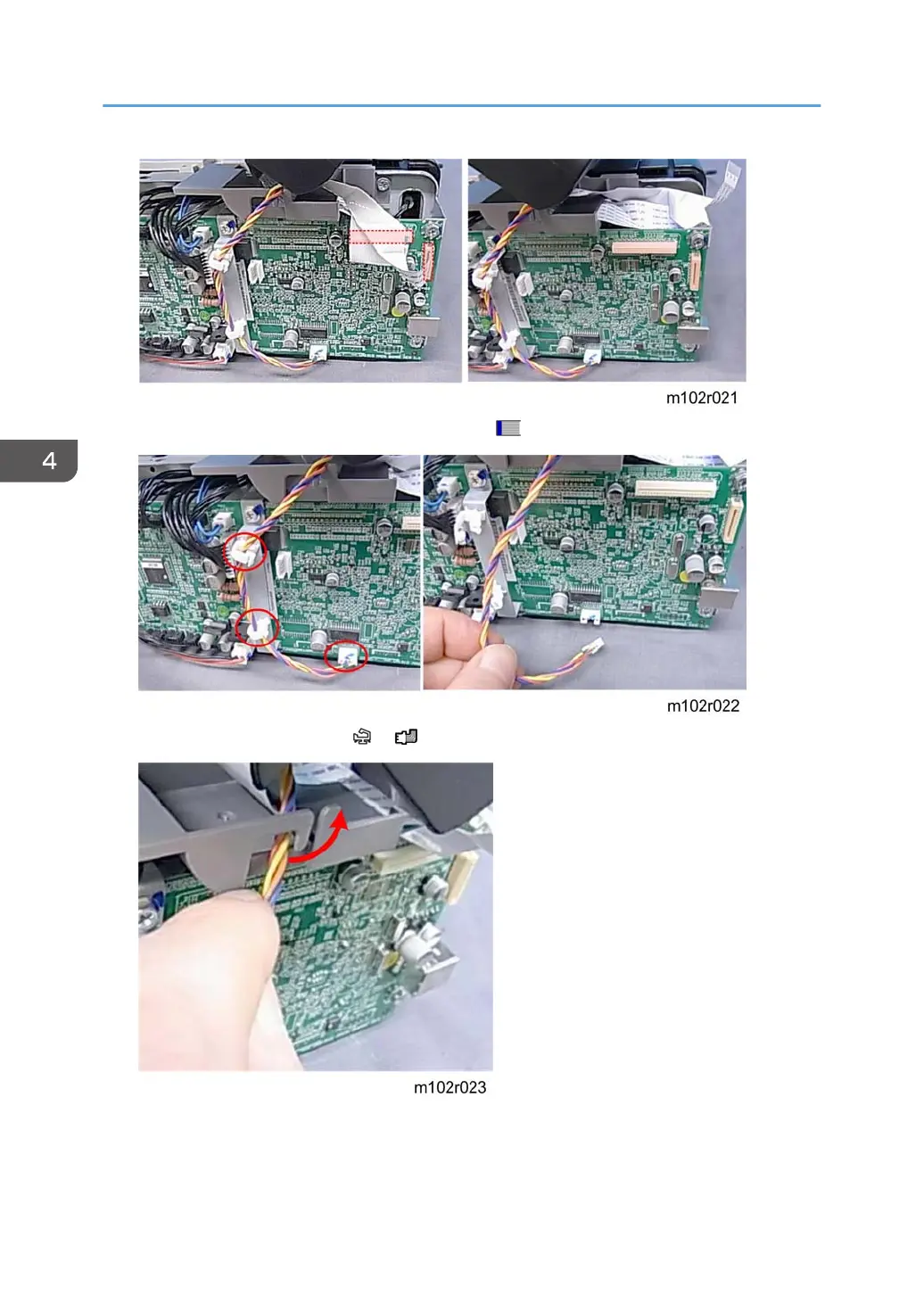

2. Disconnect the flat cables at the upper right corner ( x2).

3. Disconnect the center harness ( x2, x1)

4. Above the board, disconnect the center harness from the harness guide.

4. Replacement and Adjustments

124
