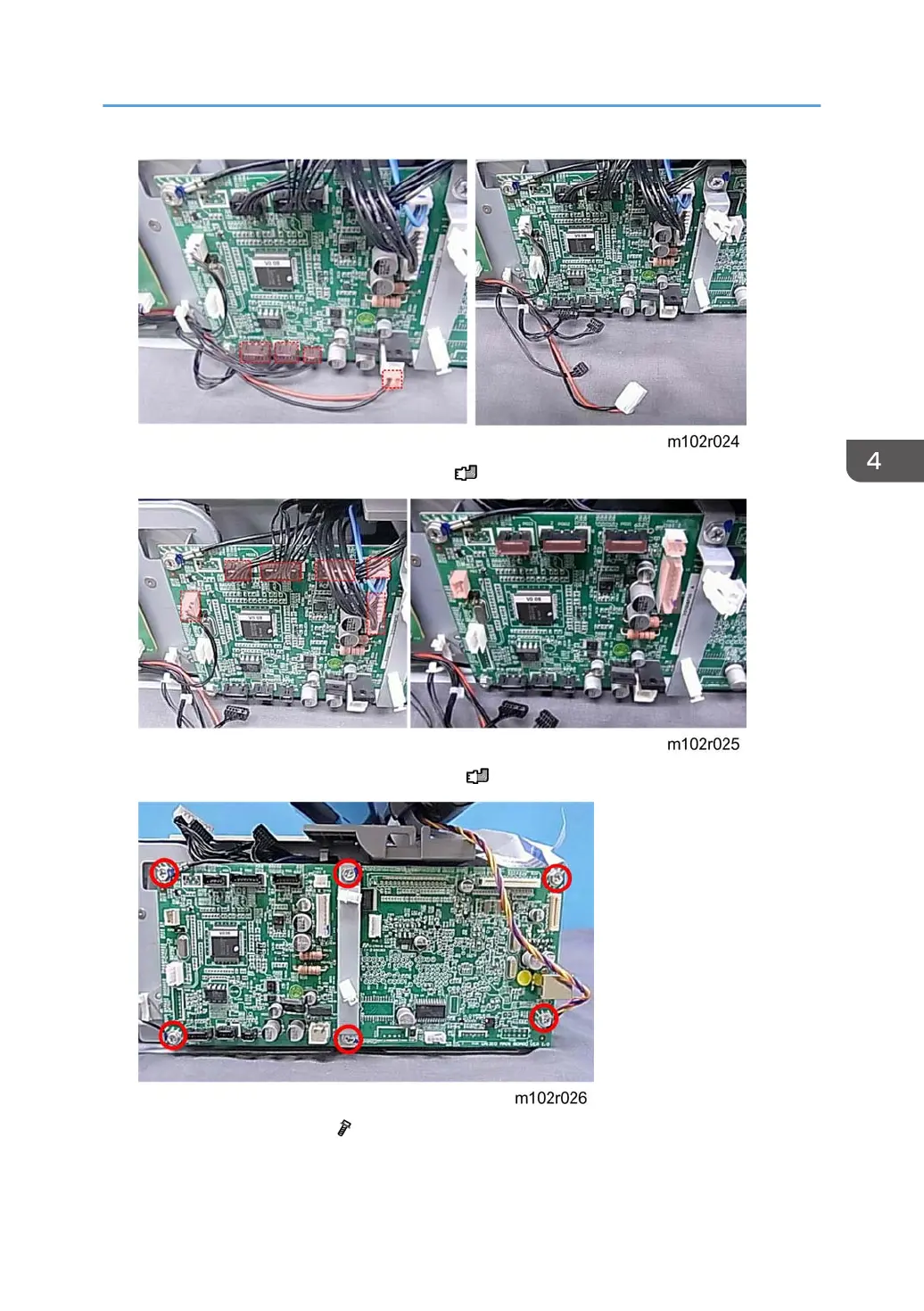

5. Disconnect the lower left corner of the board ( x4).

6. Disconnect the upper right corner of the board ( x6).

7. Disconnect the main board ( x6).

Boards

125
