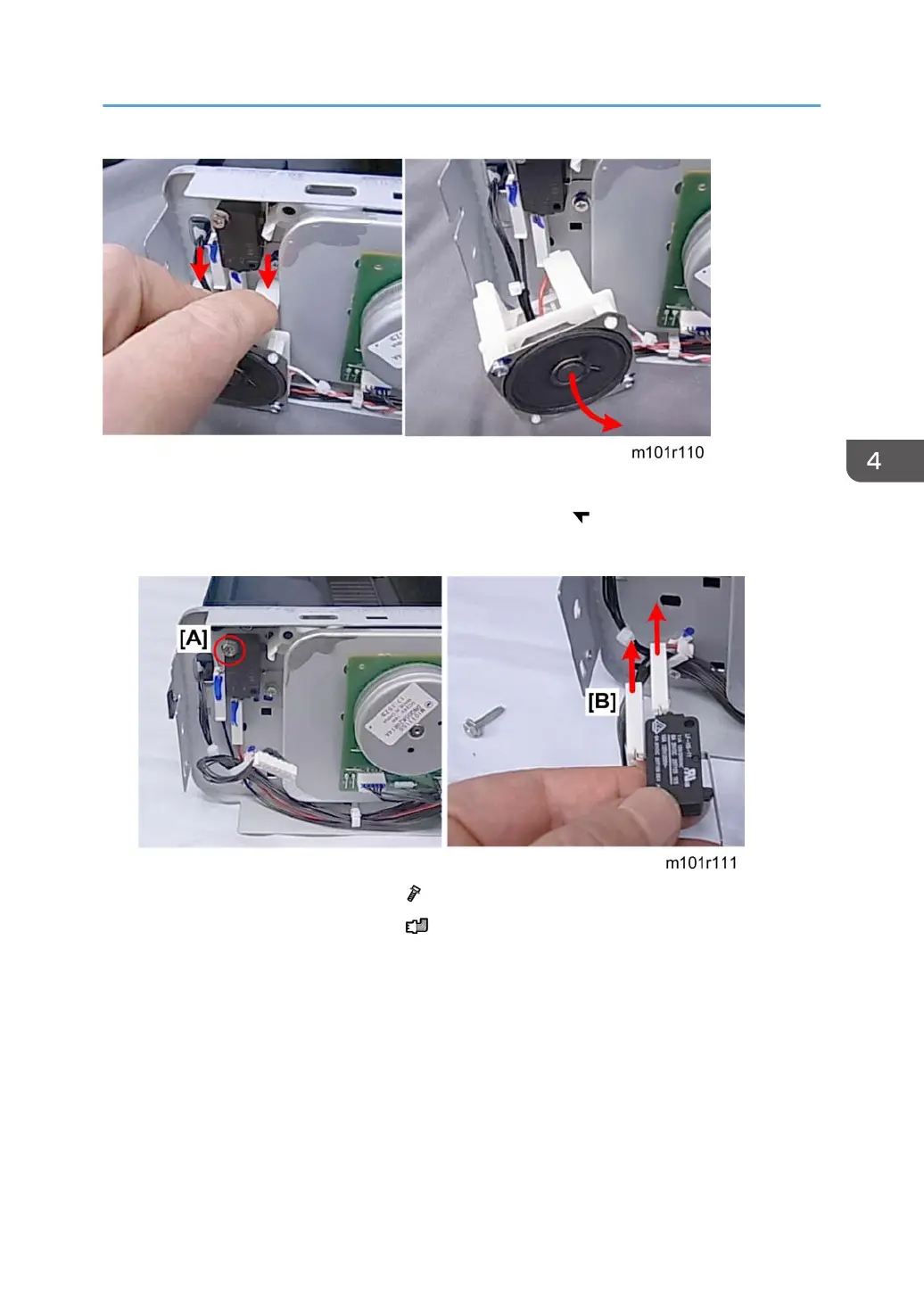

1. If you are servicing the M103, you must move the speaker so you can access the breaker switch.
• Release the tabs at the top of the speaker mounting plate ( x2).
• Move the speaker slightly to the right (you do not need to remove it).
2. Remove the breaker switch screw [A] ( x1).
3. Disconnect and remove the switch [B] ( x2).
Switches
107
