Ricoh Aficio SP 100SF - Page 119

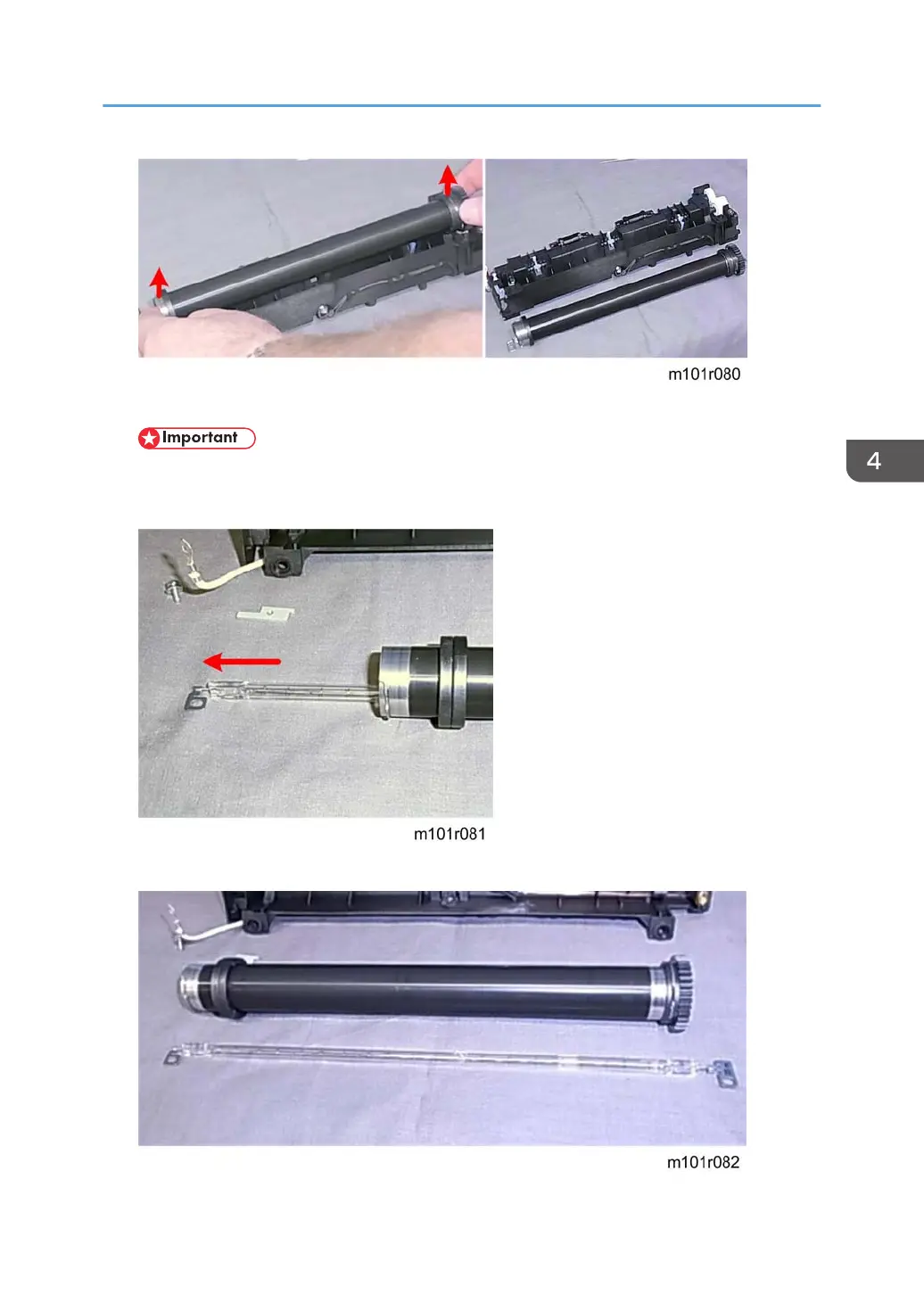

5. Lift both ends of the hot roller and remove it.
• Avoid touching the surface of the hot roller with your fingers or bare hands.
• If the roller requires cleaning, wipe the surface with a clean dry cloth.
6. Pull the fusing lamp slowly out of the left end of the hot roller.
Fusing Unit
117
