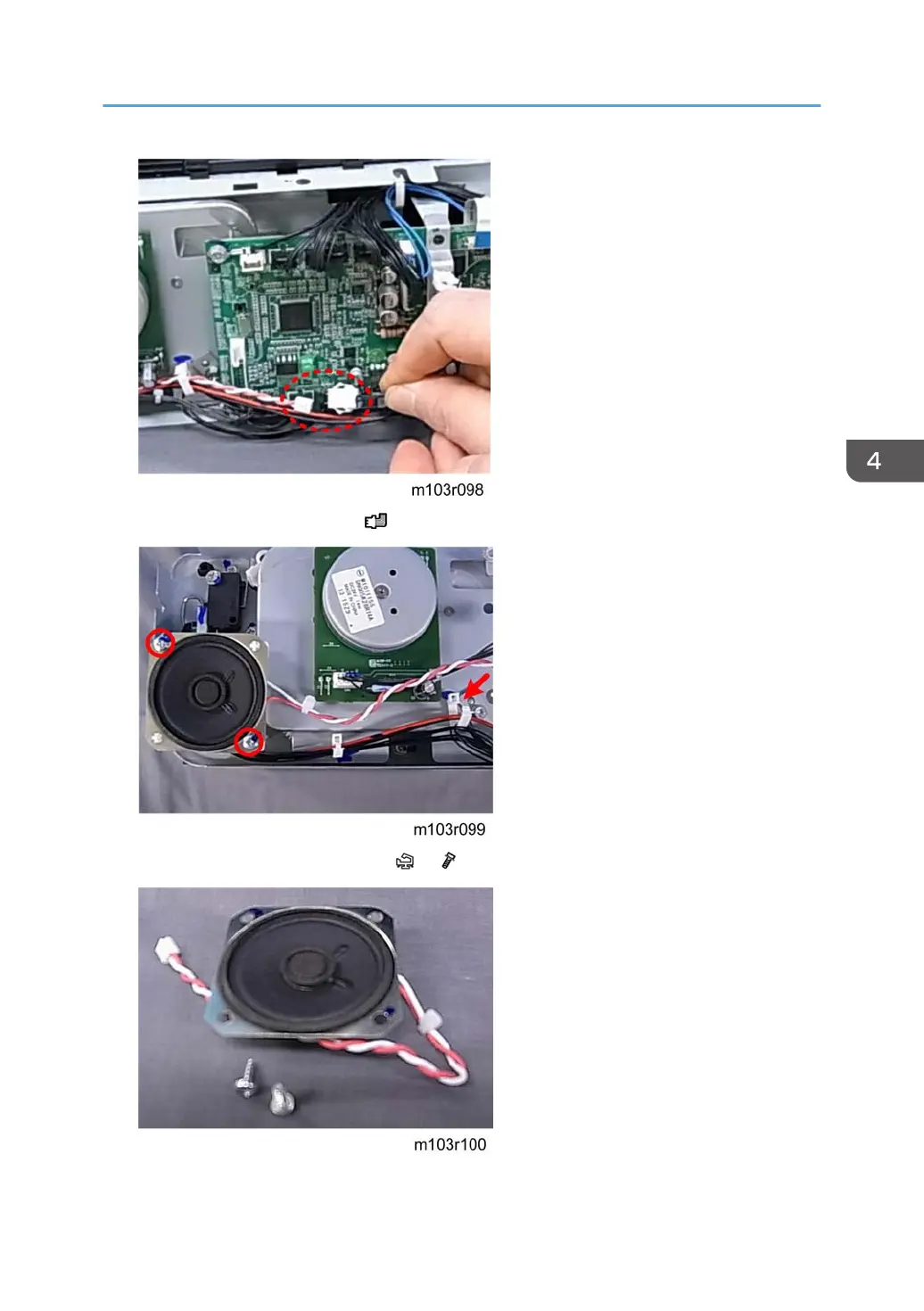

1. Disconnect the speaker harness ( x1).

2. Disconnect and remove the speaker ( x1, x2).

Boards

133
