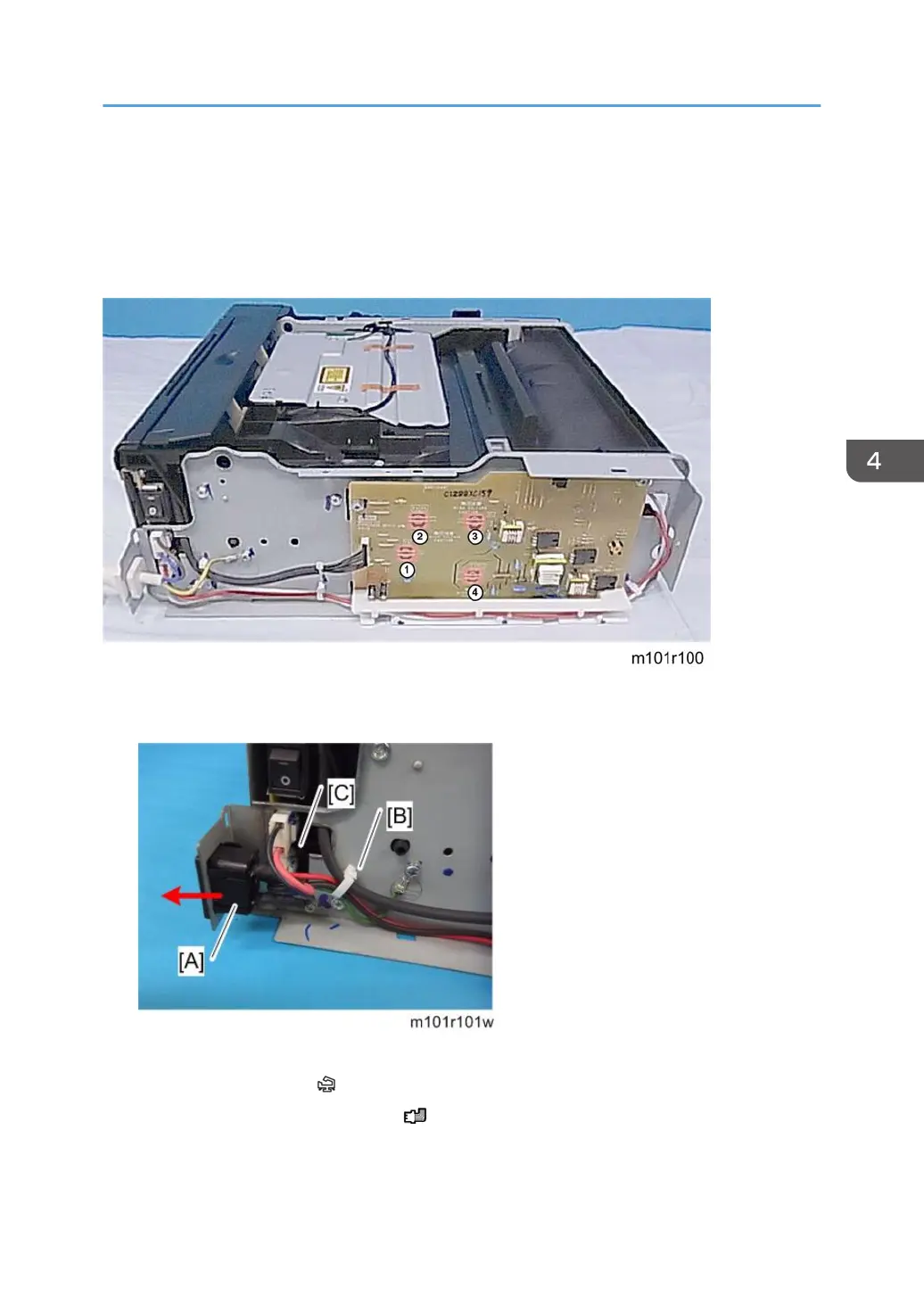

1. The HVPS is in contact with four spring-loaded terminal heads behind the board. (These contacts
are from the AIO.)
2. Remove the base of the power cord [A] from its mount.
3. Free the harnesses at [B] ( x1).
4. Disconnect the fusing unit harness [C] ( x1).
