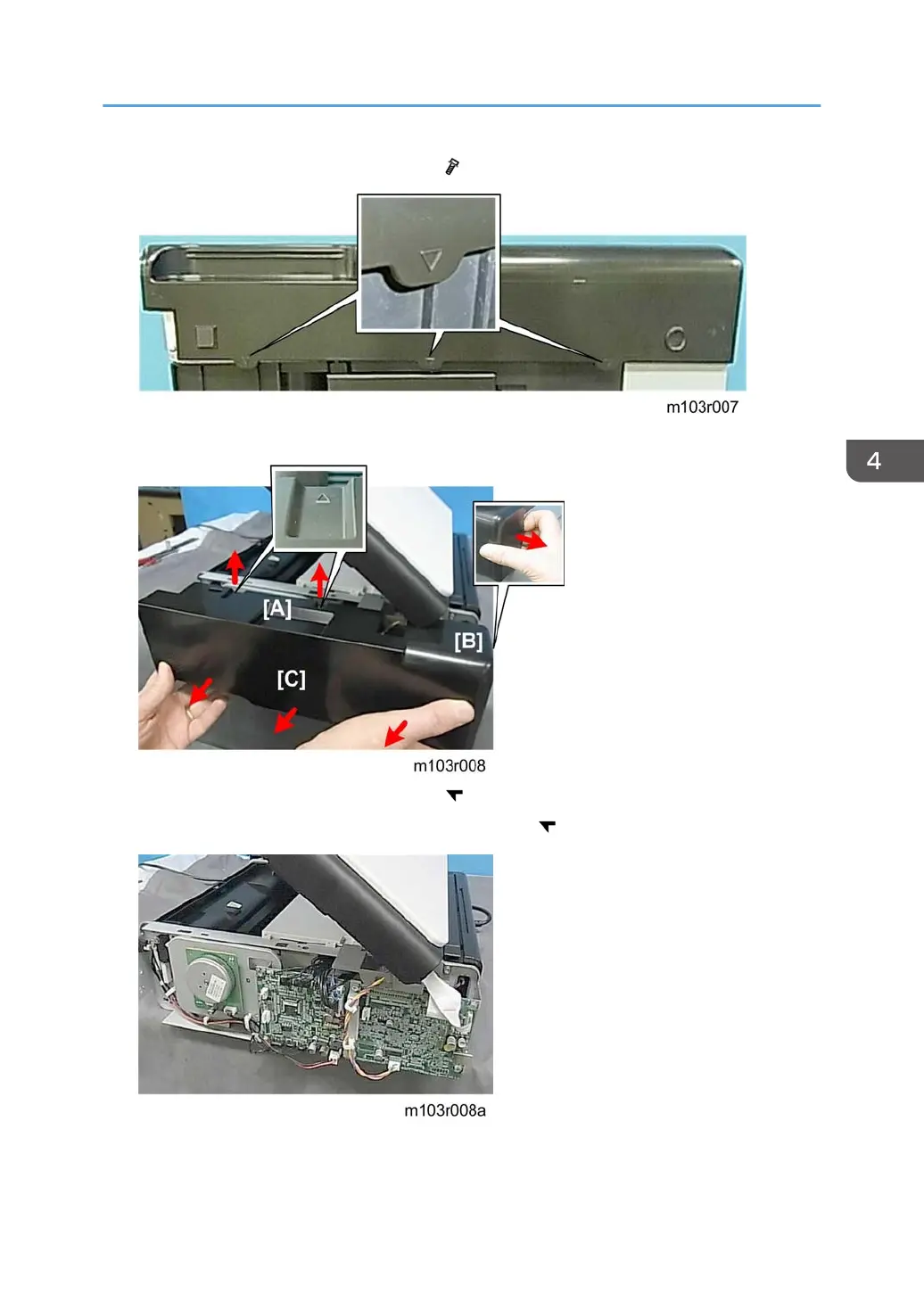

1. Remove the screw on top of the right cover ( x1).
2. Locate the triangle marks that show you where the tab releases are located on the bottom.
3. Release the tabs on the top [A] and rear [B] ( x3).
4. Release the tabs on the bottom [C] and remove the cover ( x3).
