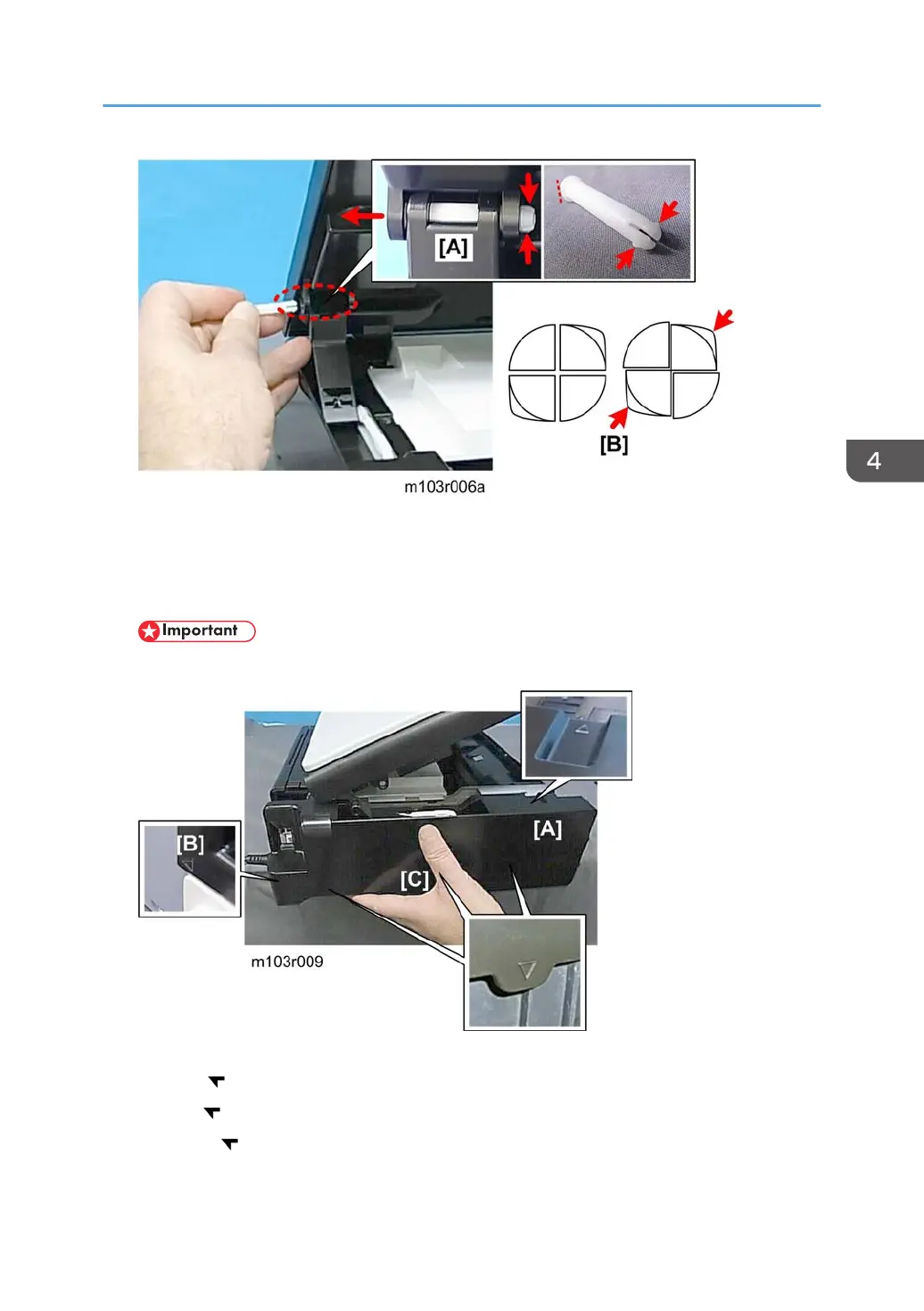

2. At the top of the hinge, look at the head of the cotter pin [A]. The flat side of the head shows you
where the two split ends of the pin are located.
3. With your fingers or the tips of a pair of radio pliers compress the split ends [B] of the pin, push it to
the left, and then remove it.
• The pin is split into four sections but only two sides protrude to lock and release the pin.
4. At the triangle markers, release the tabs:
[A] Front ( x1)
[B] Rear ( x1)
[C] Bottom ( x3)
