Ricoh Aficio SP 100SF - Page 70

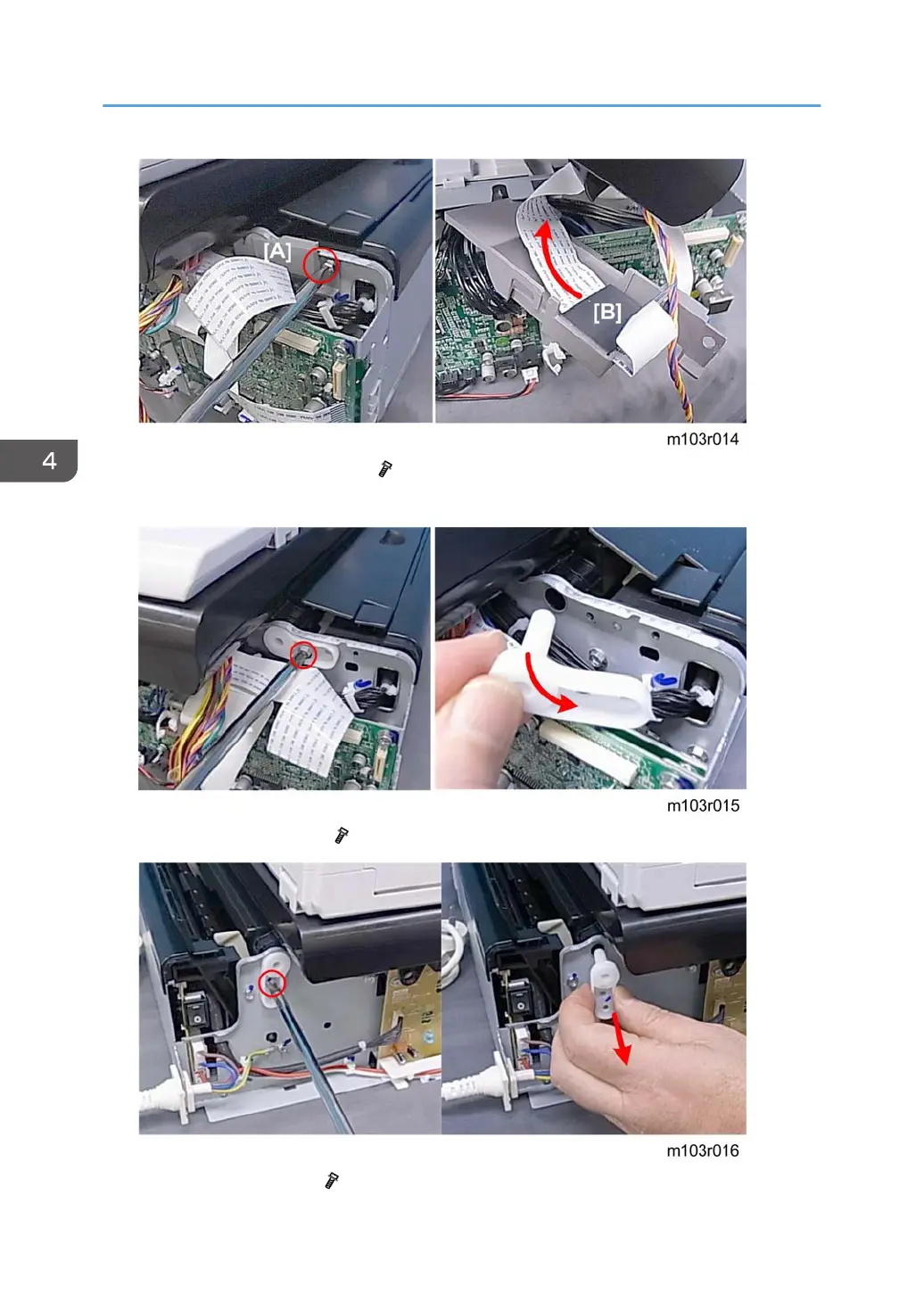

5. Disconnect the harness guide [A] ( x1).
6. Pull the flat cable out of the ferrite plate [B], and then remove the harness guide.
7. Remove the right hinge pin ( x1).
8. Remove the left hinge pin ( x1).
4. Replacement and Adjustments
68
