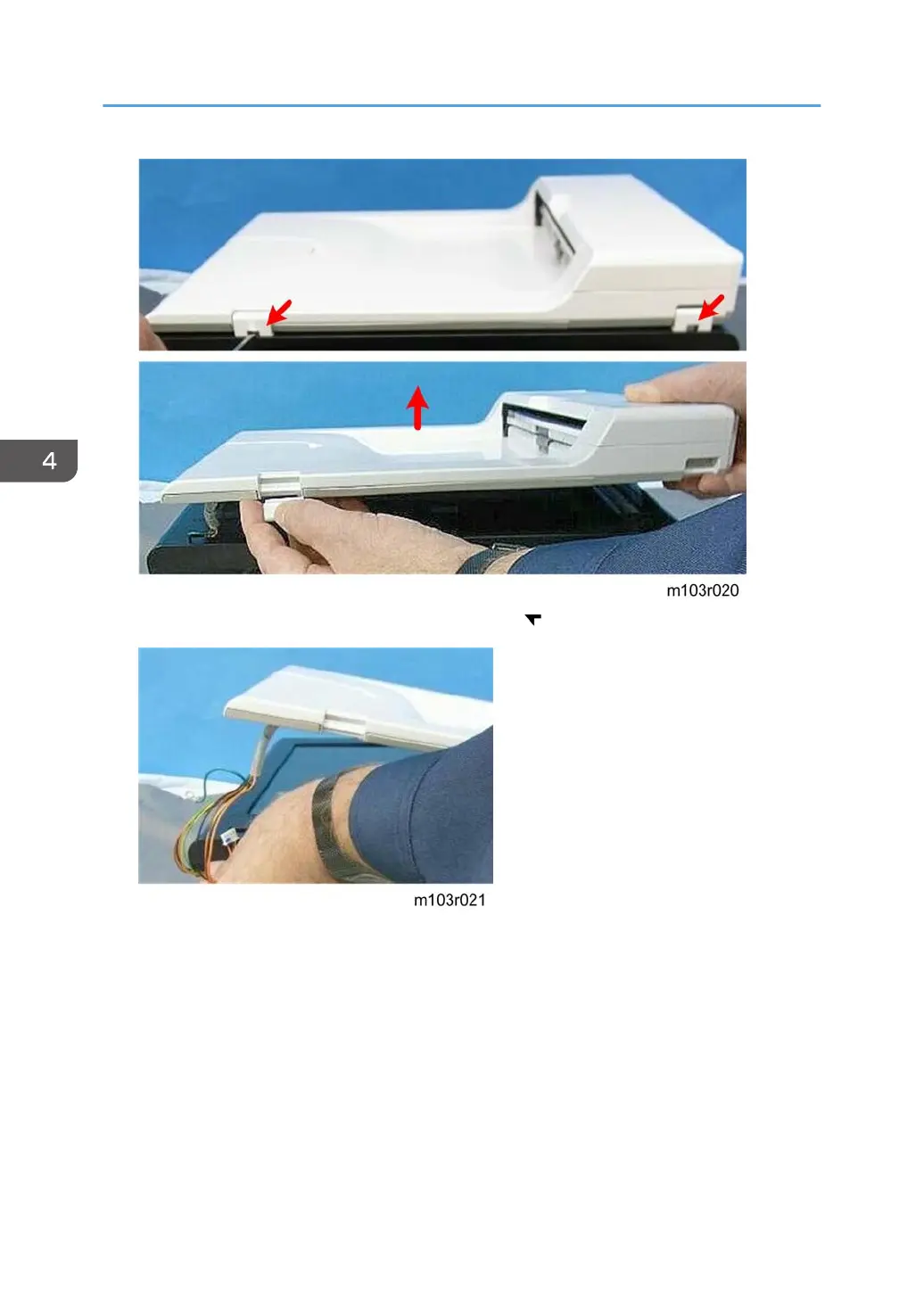

12. Use the tip of a small screw driver to release the hinges ( x2).

13. Pull the harnesses through the rear right corner of the flatbed unit.

4. Replacement and Adjustments

70
