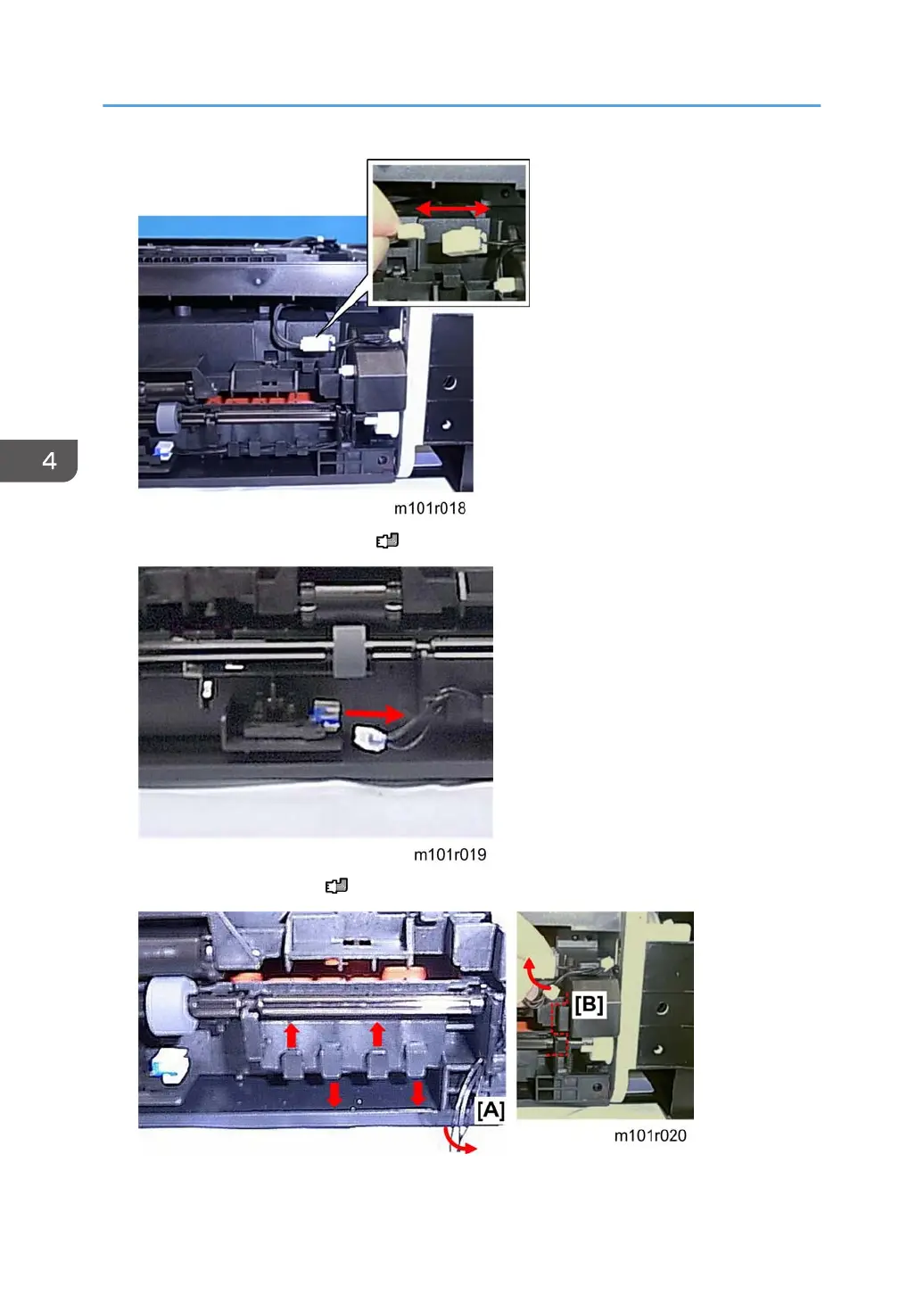

7. Disconnect the thermistor harness ( x1).
8. Disconnect the exit sensor ( x1).
9. Separate the exit sensor harness from the fusing unit across the front [A] and up the right side [B].
4. Replacement and Adjustments
74
