• The one-way clutch comes off as one piece.
• The hook lock/release locks the one-way clutch in place when it is re-installed.

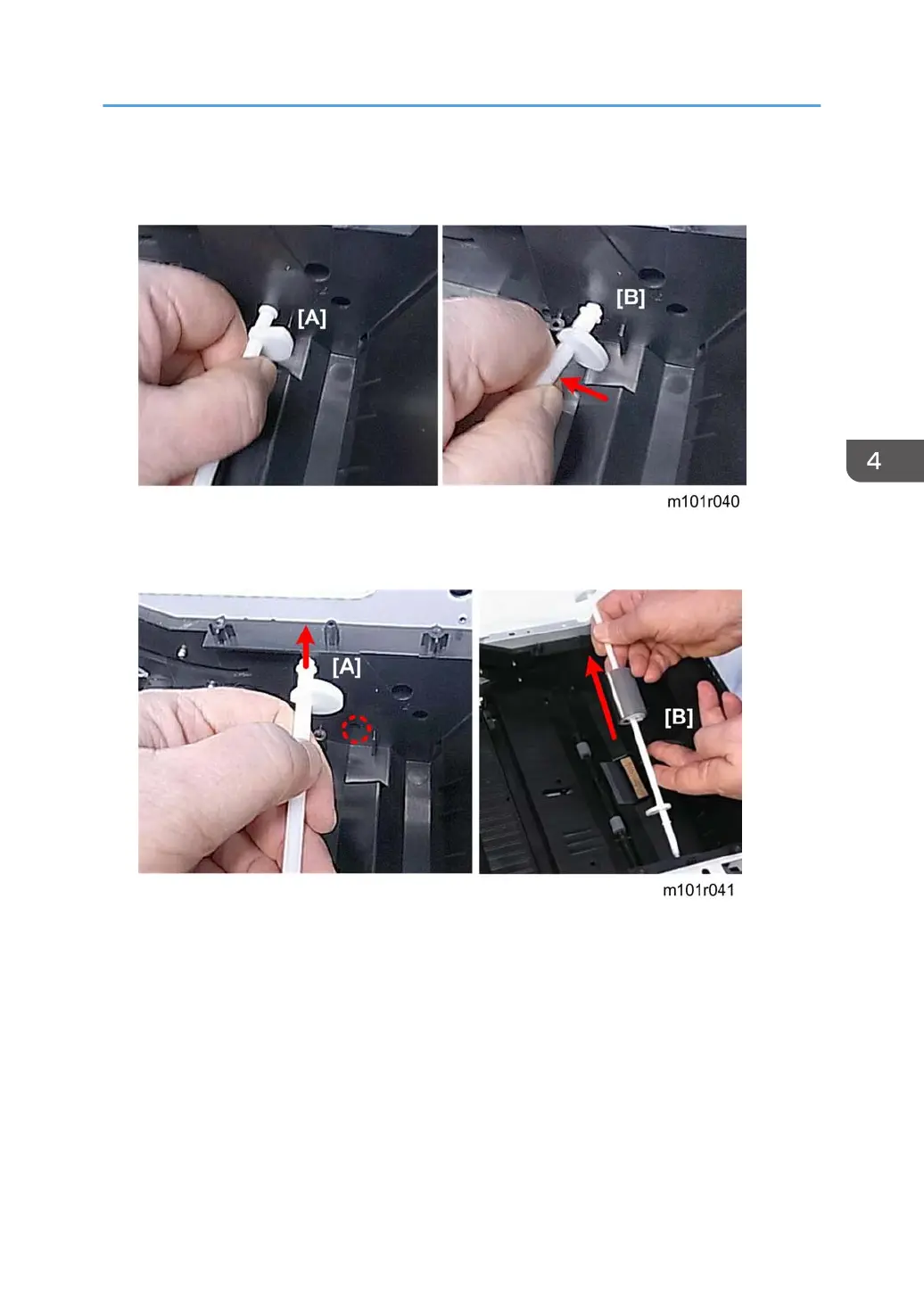

13. Inside the machine on the left, grip the end of the pickup roller [A].
14. Bend it slightly [B] and pull it out of its guide hole.
15. Pull the end of the shaft [A] straight up.
16. Remove the shaft [B].
Paper Feed and Exit
91
