Replacing the Photo Conductor Unit
113
6

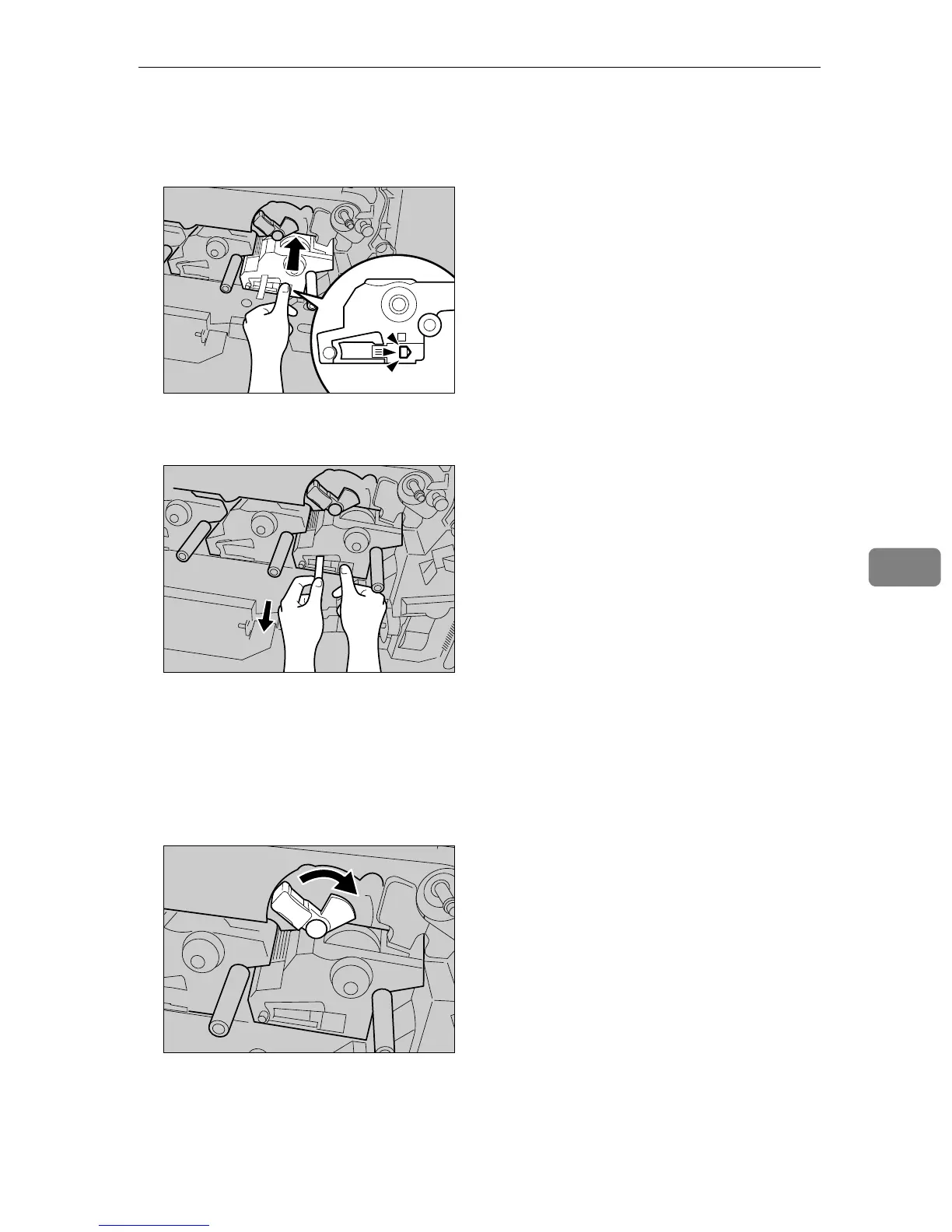

K Use a finger to push the label with three green lines, and then push in the
photo conductor unit, until it clicks into position. If the installation fails,
the small, pentagonal window turns red.
L Hold the photo conductor unit firmly in place, and then pull out the tape.
• Remember to pull out the tape. Malfunctions occur if you attempt to print
while the tape is still attached.
• The removed tape is dirty. Be careful not to let it touch your hands or
clothes.
M Turn the green lever clockwise to lock the unit.
AET144S
AET145S
AET146S
To Next Page
