Attaching IEEE 802.11b Interface Unit
35
2

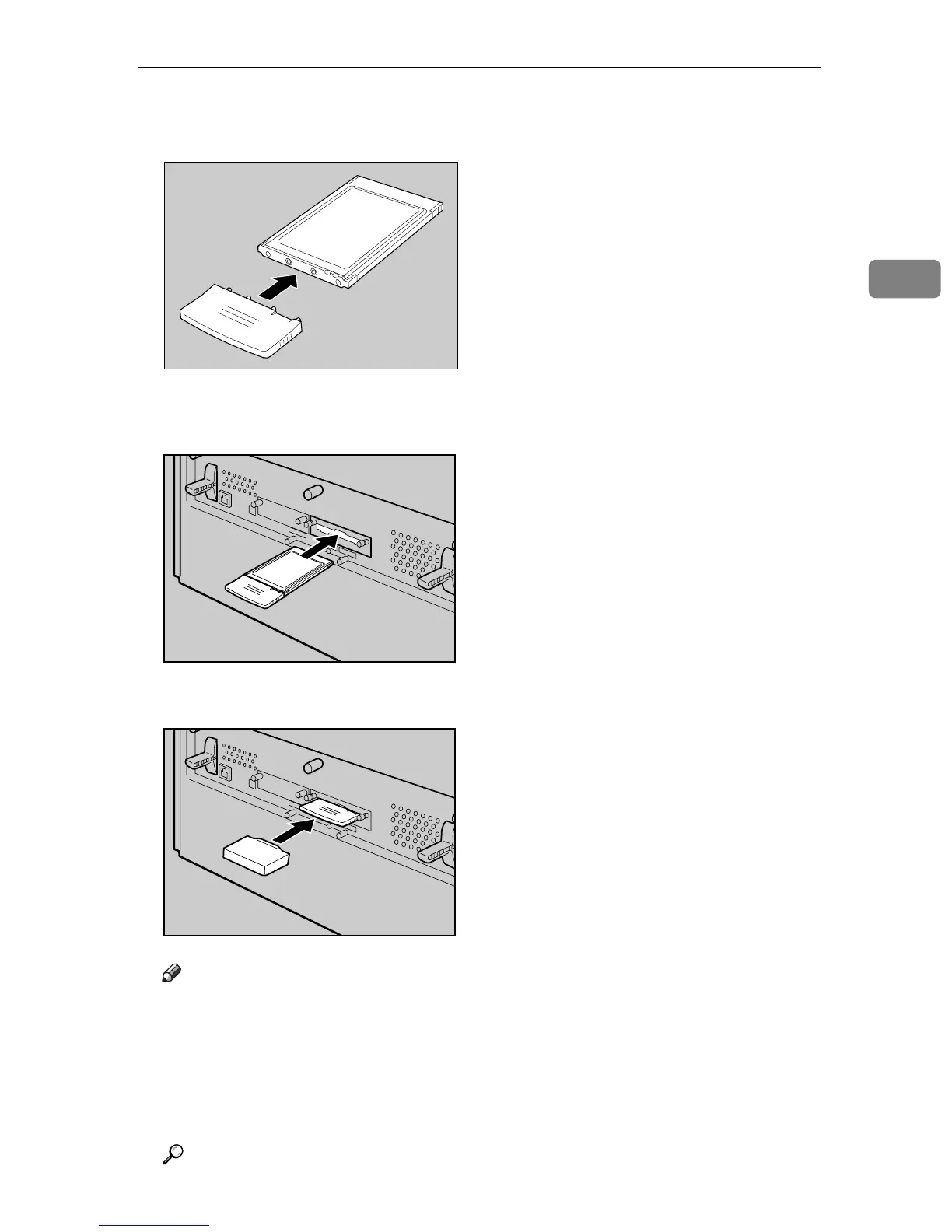

F Attach the antenna to the card with the label facing down and the uneven
side of the antenna facing up.
G With the antenna and the indented end toward you, slowly insert the inter-
face card until it stops.
H Hold the antenna cap with the cut off corners towards you and fit it over the card.
Note
❒ After finishing installation, you can check the 802.11b interface unit is
properly installed: Print the configuration page from the [List/Test Print]
menu. If it is installed properly, “IEEE 802.11b” will appear for “Device
Connection” on the configuration page.
❒ If the 802.11b interface unit is not installed properly, reinstall it following
this procedure. If you cannot install it properly even after attempting rein-
stallation, contact your sales or service representative.
Reference
For printing the configuration page, see “Test Printing”, Quick Installation Guide.
