Installing Options
44
2
B Turn off the power, and then unplug the power cable.

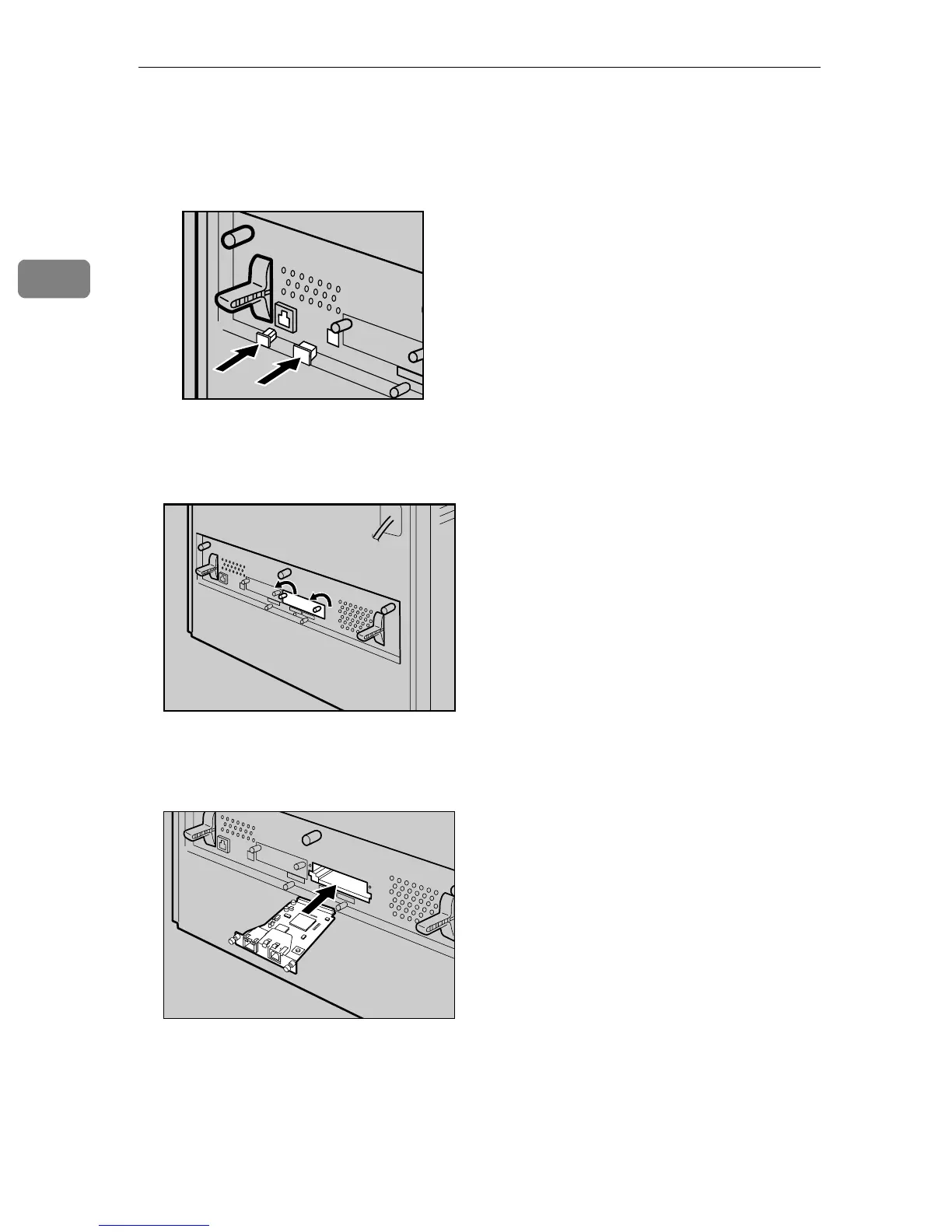

C Disconnect the cables from the ethernet port and the USB port of the print-
er, and cover each port with its protective cap.
D Loosen the two screws and remove the cover of the Gigabit ethernet board
installation unit.
The removed cover is not used when installing the interface unit.
E Fully insert the Gigabit ethernet board.
AQC046S
AQC091S
AQC043S
To Next Page
