Attaching Gigabit Ethernet Board Type A
45
2

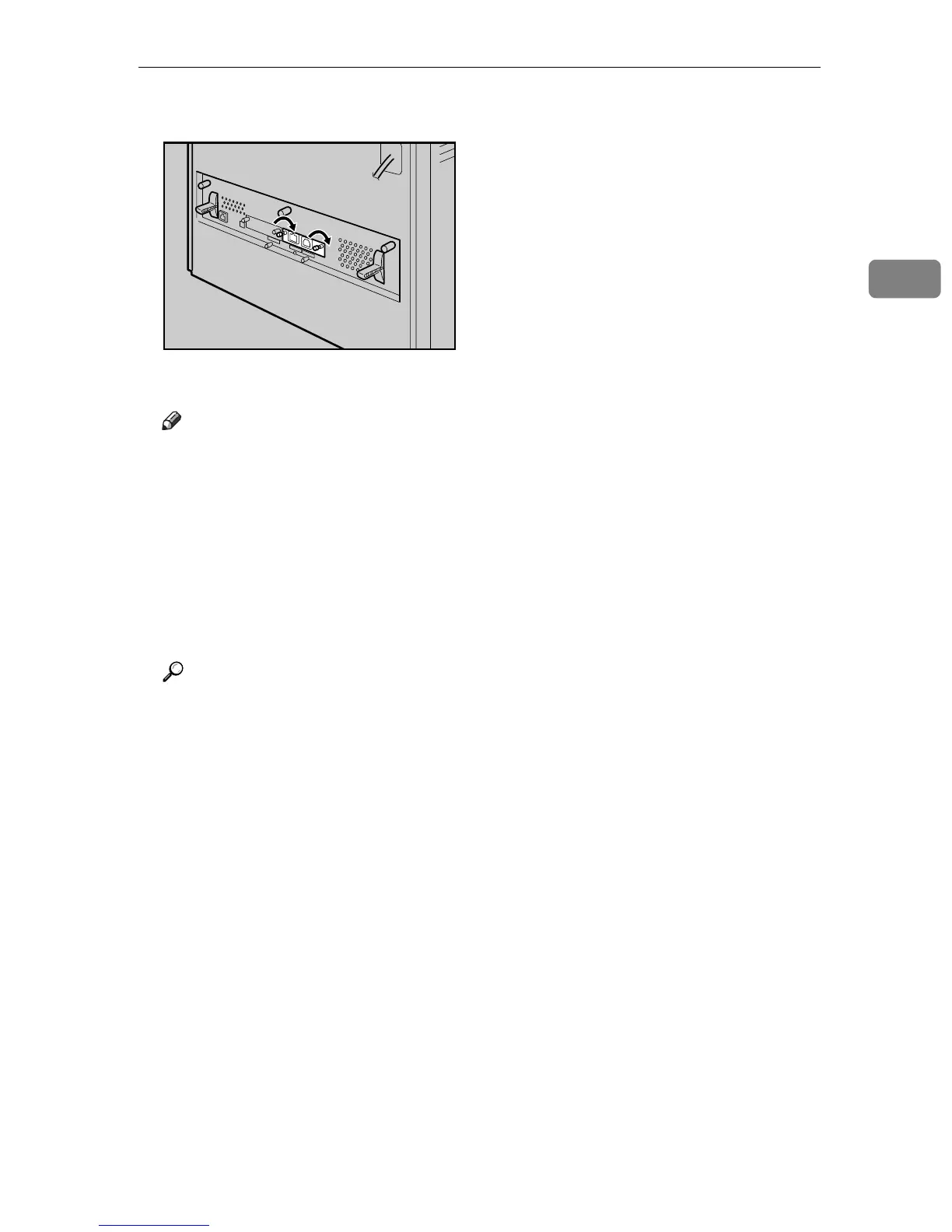

F Tighten the two screws to secure the Gigabit ethernet board.
Check the Gigabit ethernet board is connected firmly to the controller board.
Note
❒ After finishing installation, check the Gigabit ethernet board is installed
properly: print the configuration page from the [List/Test Print] menu. If it
is installed properly, you will see “Gigabit Ethernet Board” for “Device
Connection” on the configuration page.
❒ If the Gigabit ethernet board is not installed properly, reinstall it following
this procedure. If you cannot install it properly even after attempting rein-
stallation, contact your sales or service representative.
❒ You need to make settings with the control panel before using the gigabit
ethernet board. For details, see p.63 “Ethernet Configuration”.
Reference
For details about printing the configuration page, see “Test Printing”,
Quick Installation Guide.
AQC045S
