Controller Unit

SM 4-25 D146/D147/D148/D149/D150

Replacement

and Adjustment

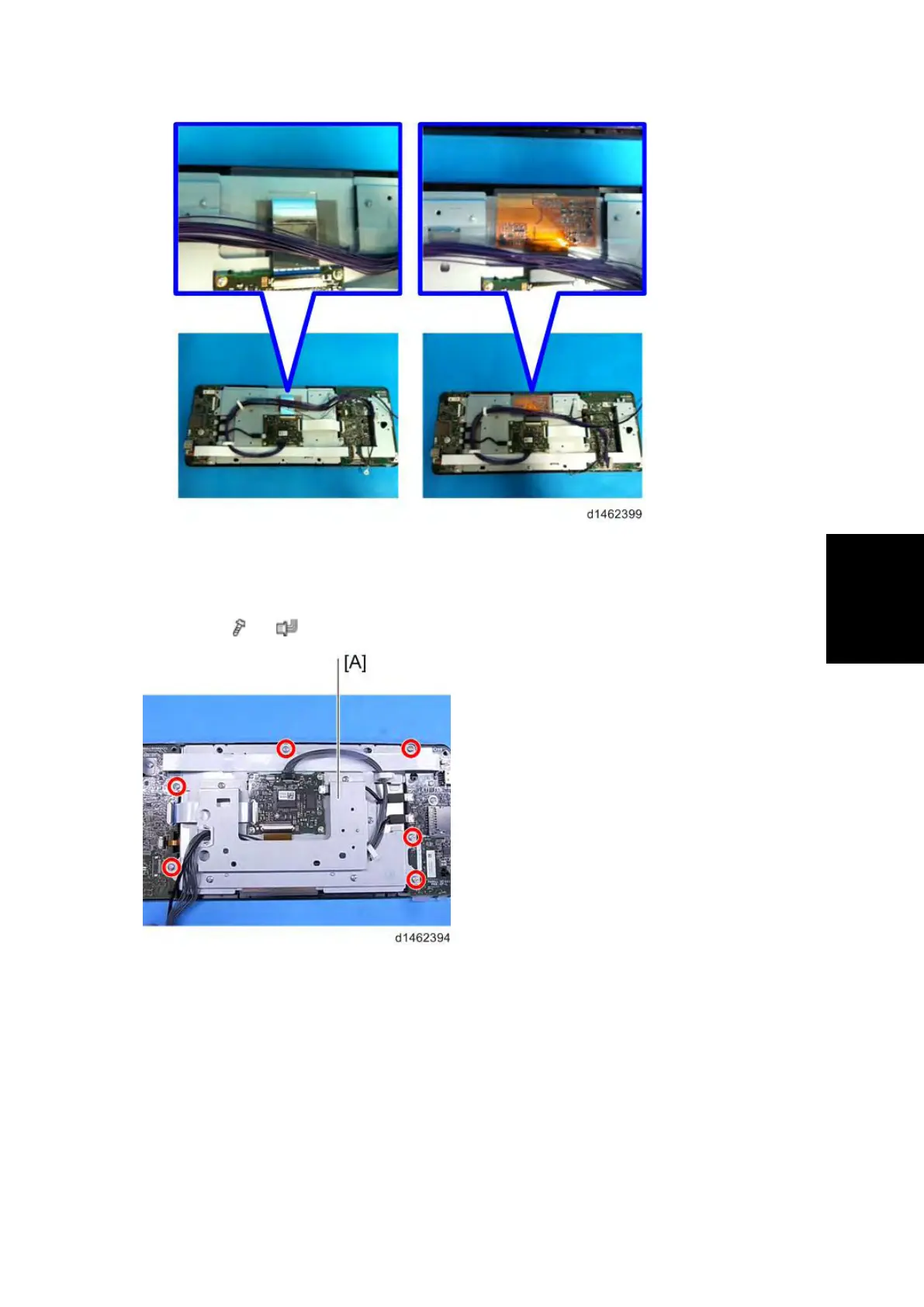

Replacement procedure

1. Operation panel arm bracket (page 4-19 "Operation Panel")

2. Bracket [A] ( ×6, ×5, USB×2)

3. LCD panel unit [A]
