APS Feeler

D683 22 SM

1.16 APS FEELER

1. ADF rear cover (page 8 "ADF Rear Cover")

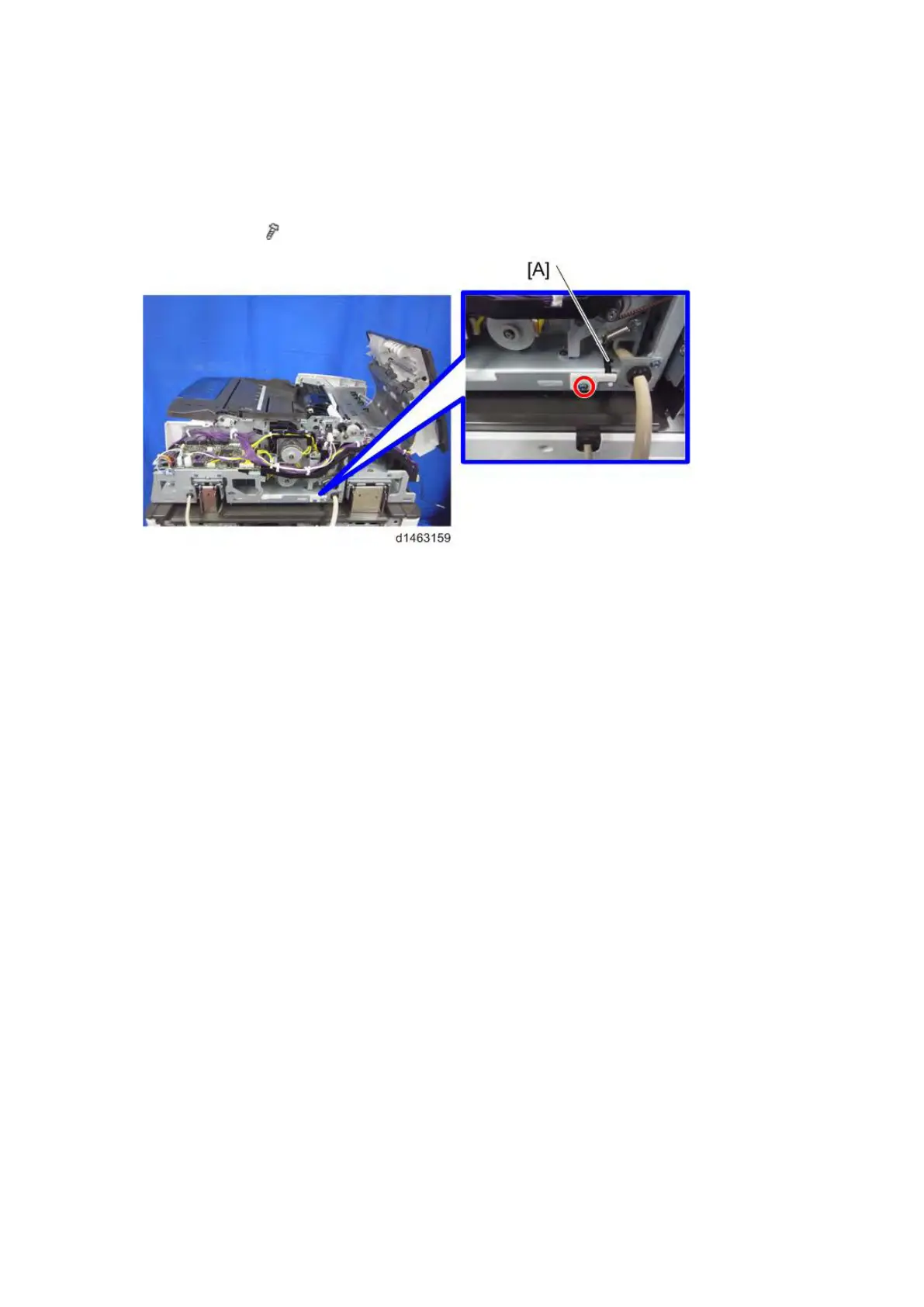

2. APS Feeler [A] (

×1)
