Electrical Components

D146/D147/D148/D149/D150 4-152 SM

4.17.9 HVP_TTS

1. Open the controller box. (page 4-151 "Imaging IOB")

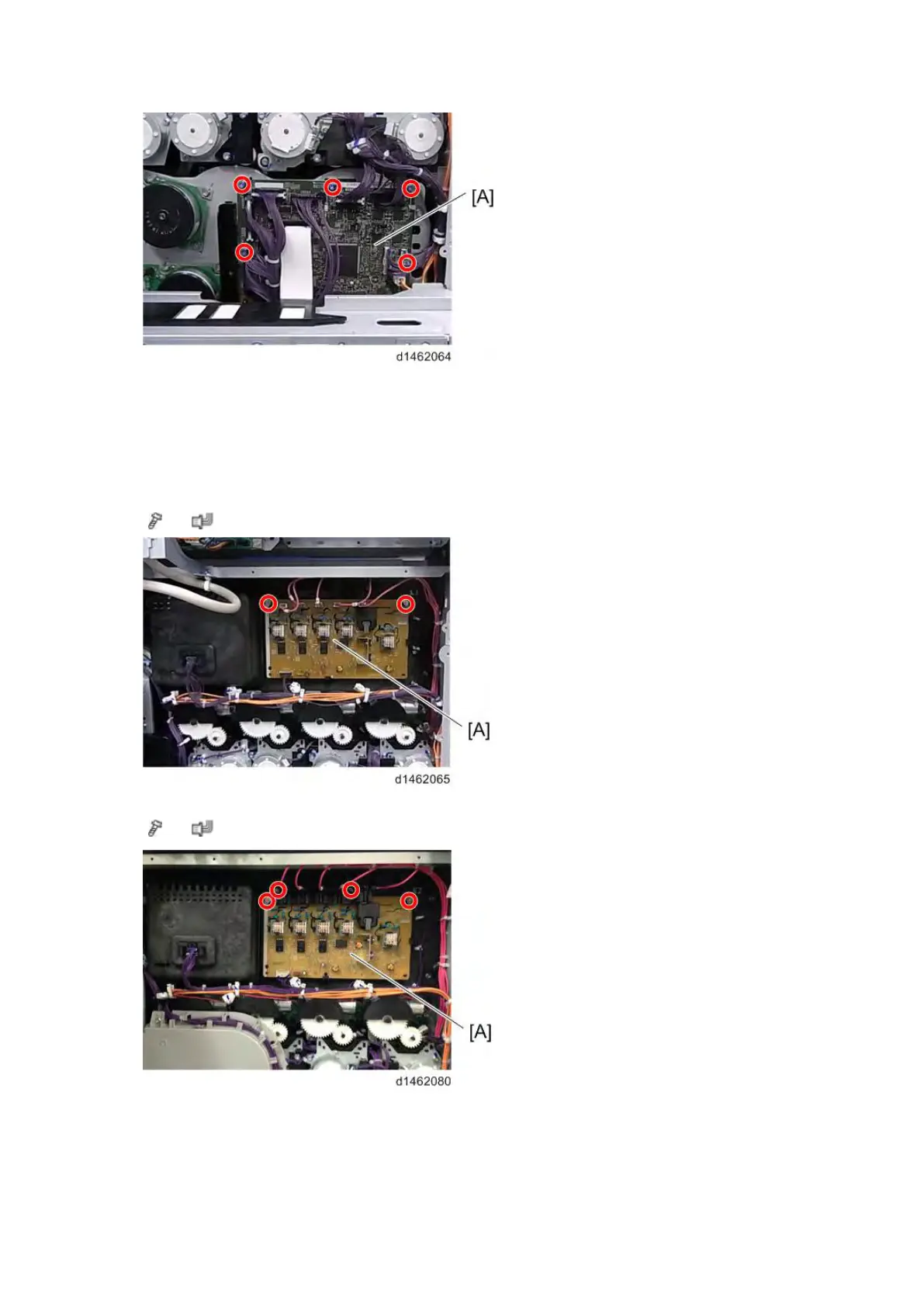

2. HVP_TTS [A]

D148/D149/D150

(

×2, ×**)

D146/D147

(

×4, ×**)
