4.11.4 TRANSFER MOTOR UNIT
1. Rear right cover (page 4-11 "Rear Right Cover")
2. Scanner rear lower cover (page 4-12 "Scanner Rear Cover (Small)")

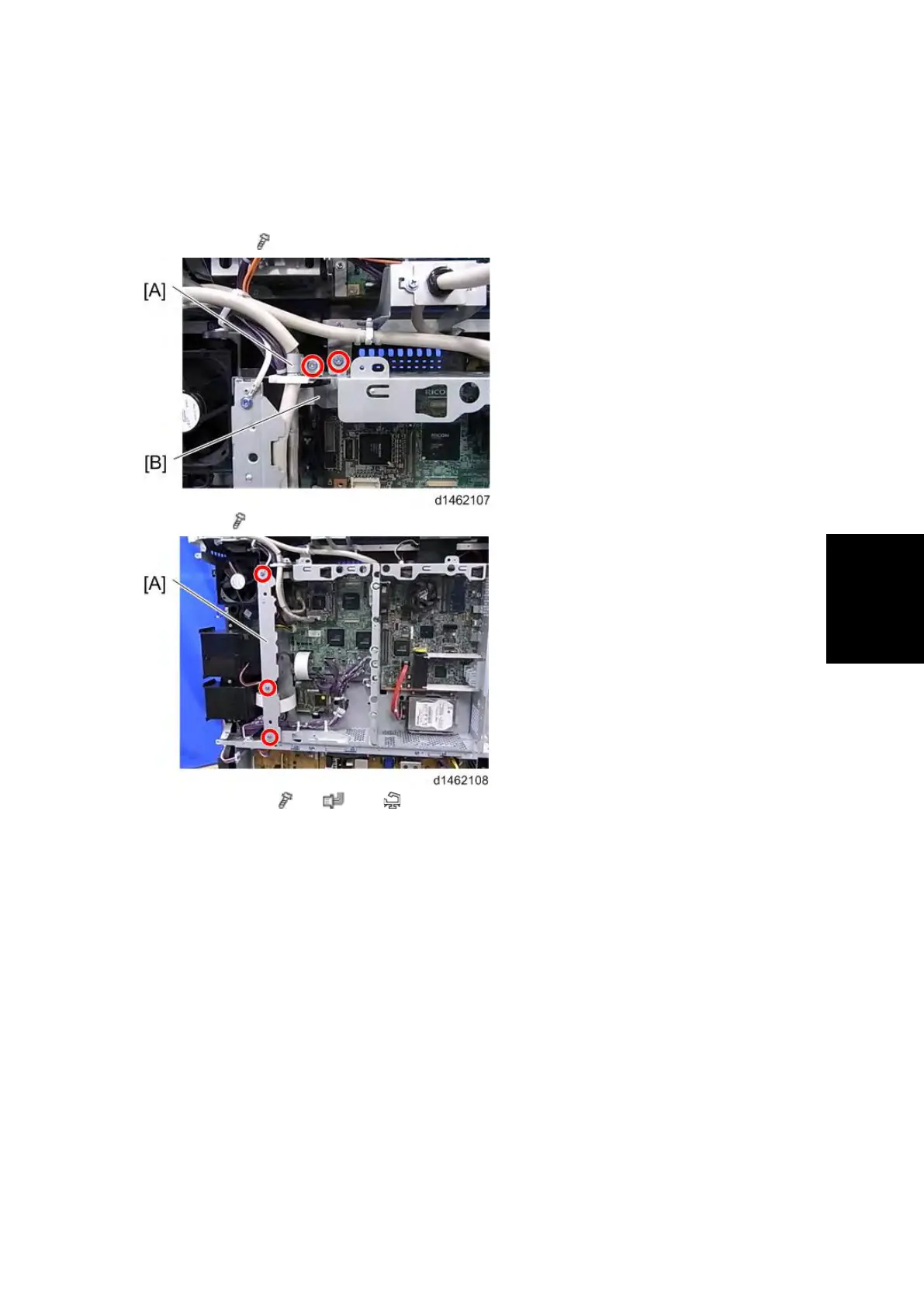

3. Bracket [A] [B] (
×2)
4. Bracket [A] (
×3)
5. Controller box [A] (
×8, ×16, ×17, USB×1)
