Entrance Motor

D690 10 SM

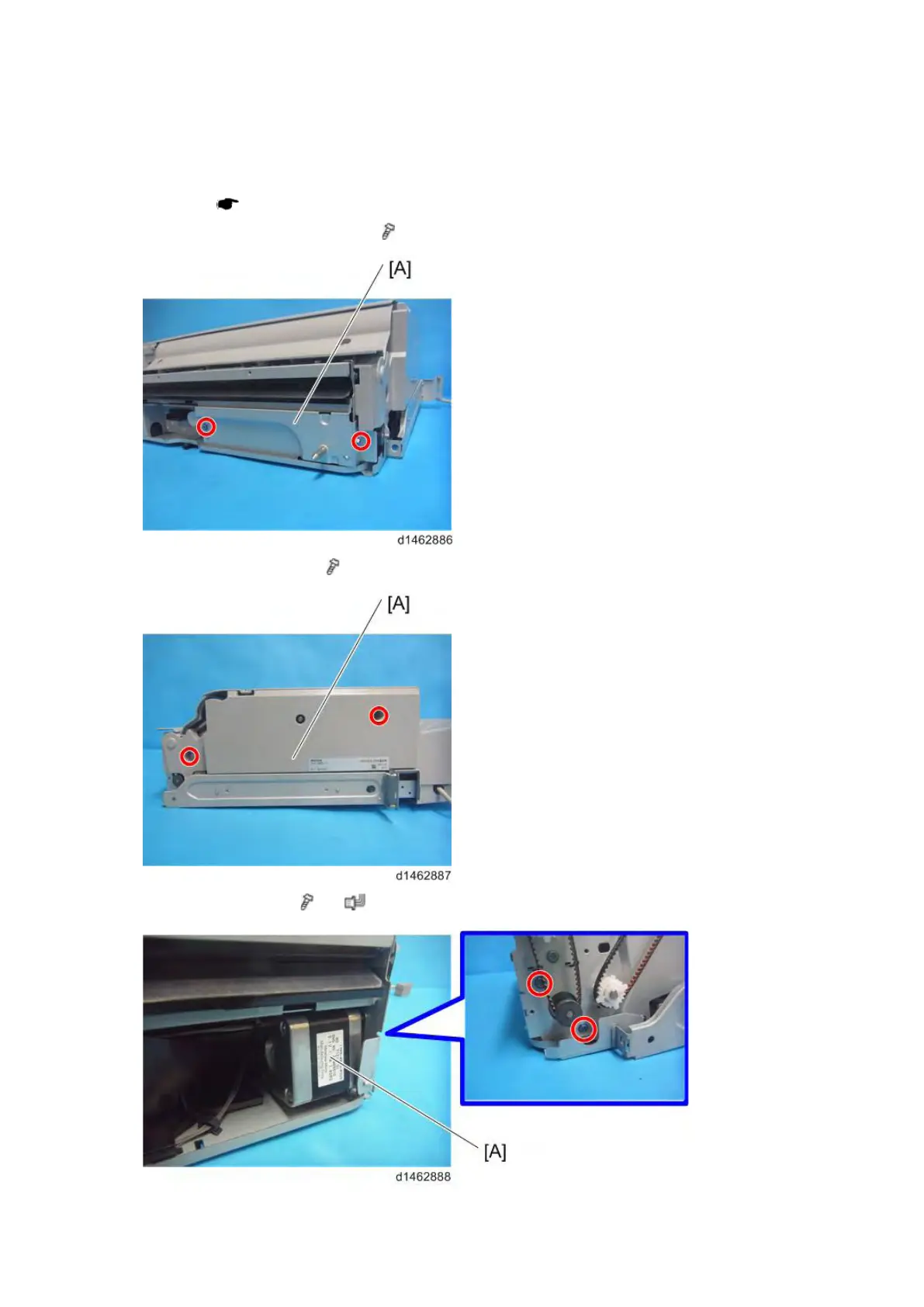

1.8 ENTRANCE MOTOR

1. Finisher ( page 1 "Inner Finisher" )

2. Finisher right rear bracket [A] (

×2)

3. Finisher rear cover [A] (

×2)

4. Entrance motor [A] (

×2, ×1)
