Ricoh D148 - Duplex;By-Pass Motor

To Next Page

To Previous Page

Duplex Unit

D146/D147/D148/D149/D150 4-136 SM

MP C5503/C4503/C3503/C3003

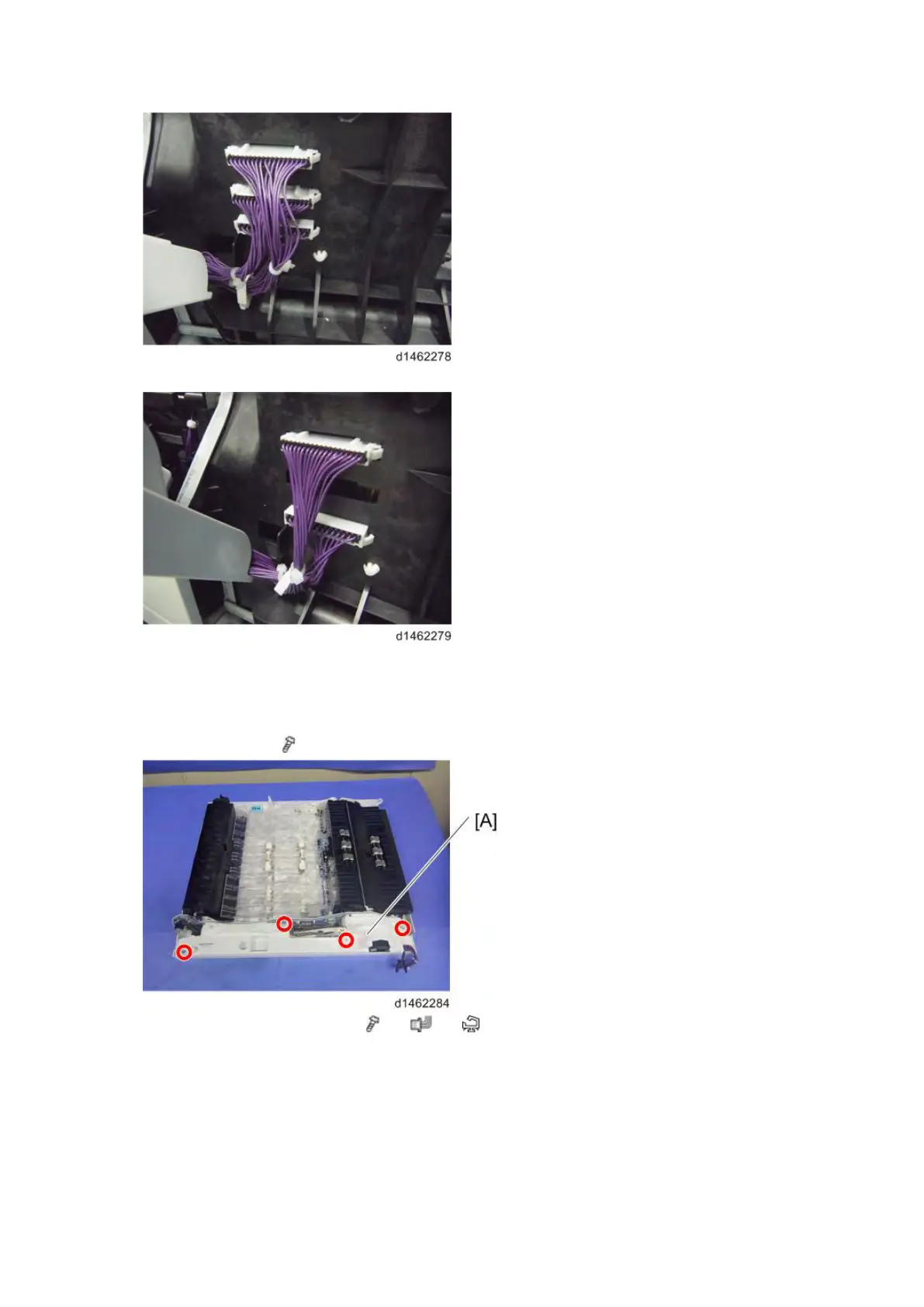

4.16.2 DUPLEX/BY-PASS MOTOR

1. Duplex unit (page 4-134 "Duplex Unit")

2. Harness guide [A] ( ×4)

3. Duplex/by-pass motor unit [A] (

×3, ×1, ×3)
