Ricoh D148 - 2 Nd Paper Feed Unit

To Next Page

To Previous Page

Paper Feed

D146/D147/D148/D149/D150 4-118 SM

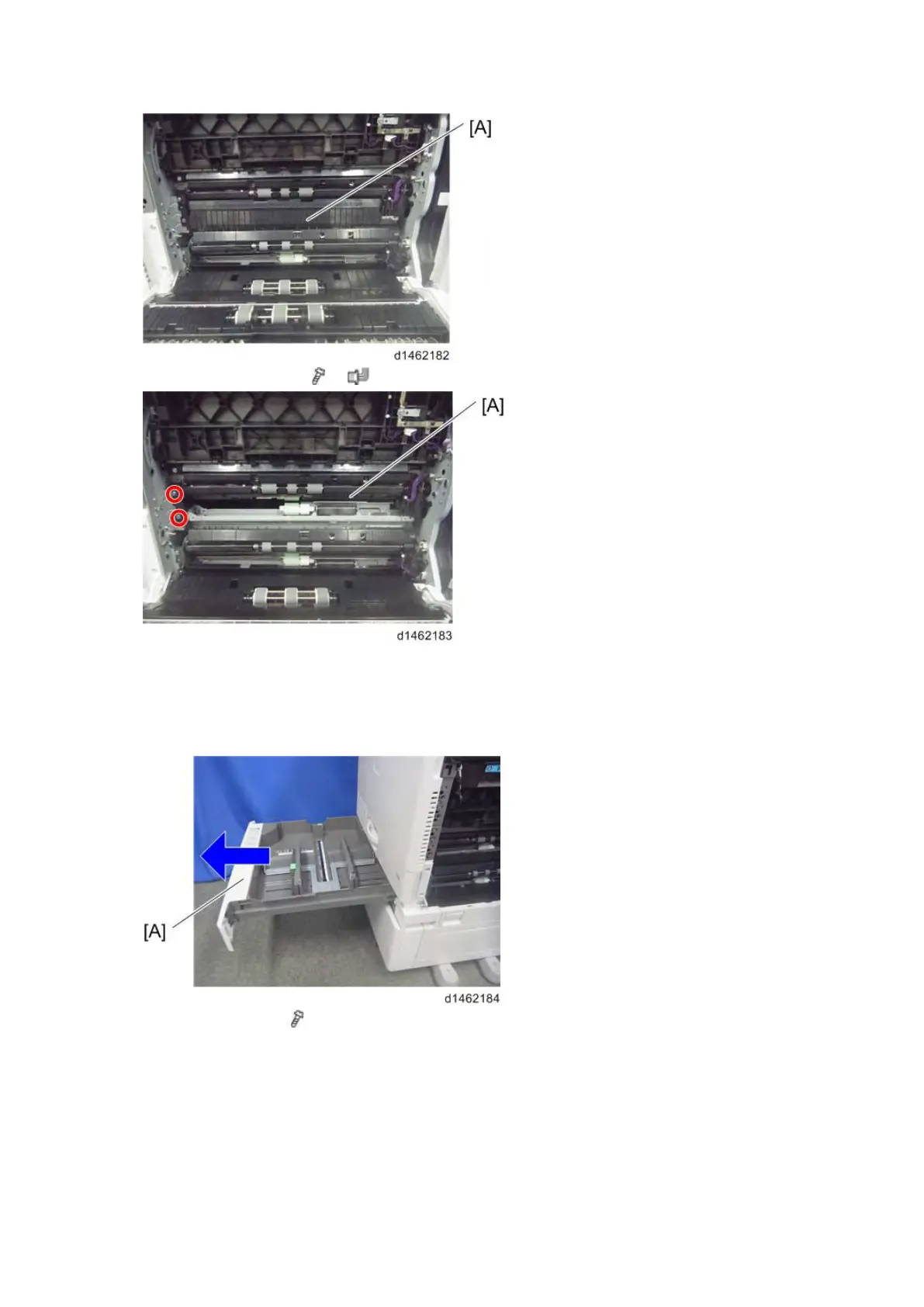

4. 1st paper feed unit [A] (

×2, ×1)

2nd Paper Feed Unit

1. Duplex unit (page 4-134 "Duplex Unit")

2. Pull out the 2nd paper tray [A].

3. Transport guide [A] (

×1)
