Paper Bail Motor

SM 15 D690

INTERNAL

FINISHER

SR3130

(D690)

1.13 PAPER BAIL MOTOR

1. Paper exit cover( page 6)

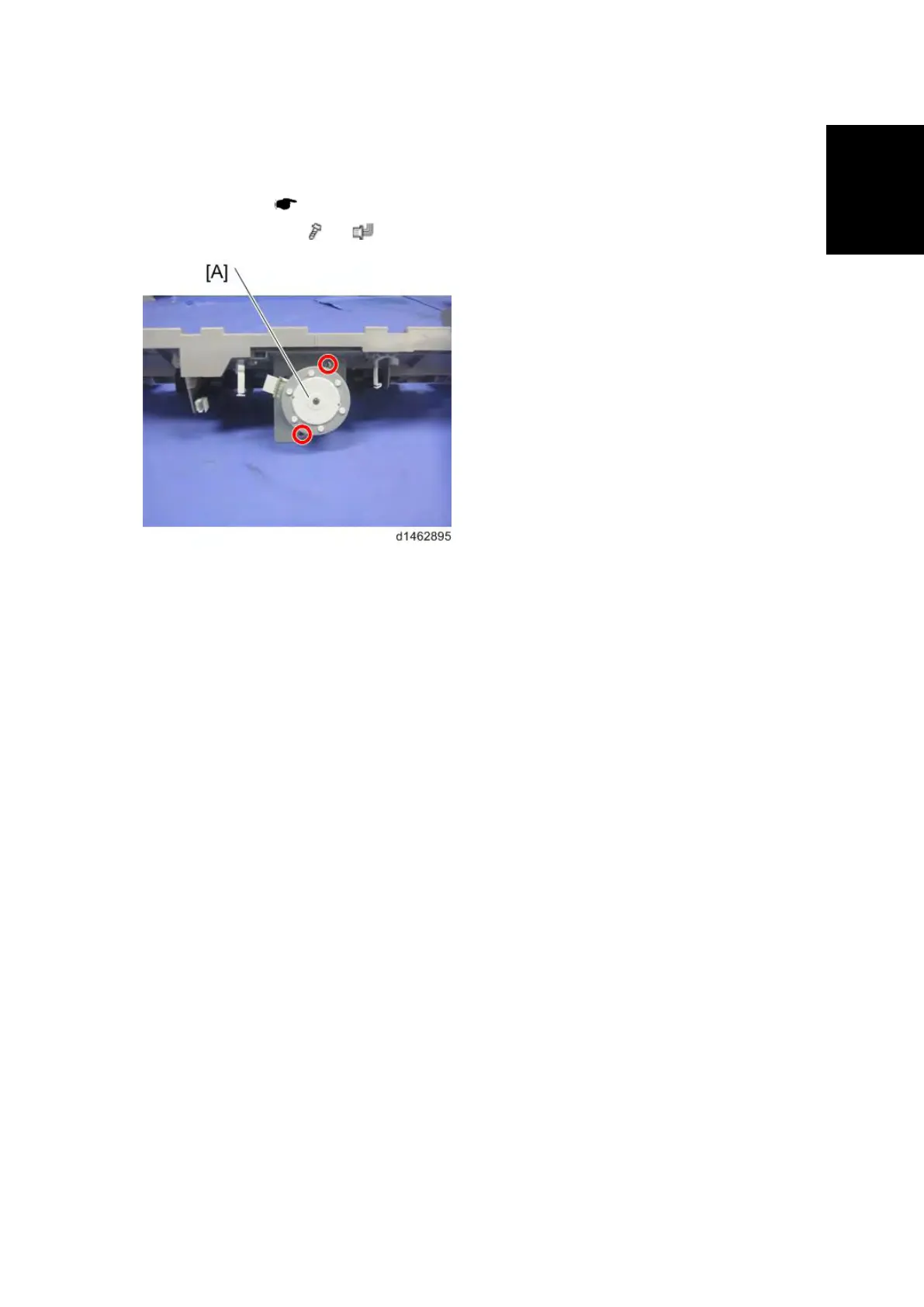

2. Paper bail motor [A] (

×2, ×1)
