Drive Motor Unit

SM 1 D725

SIDE TRAY TYPE

M3 (D725)

1. REPLACEMENT AND ADJUSTMENT

1.1 DRIVE MOTOR UNIT

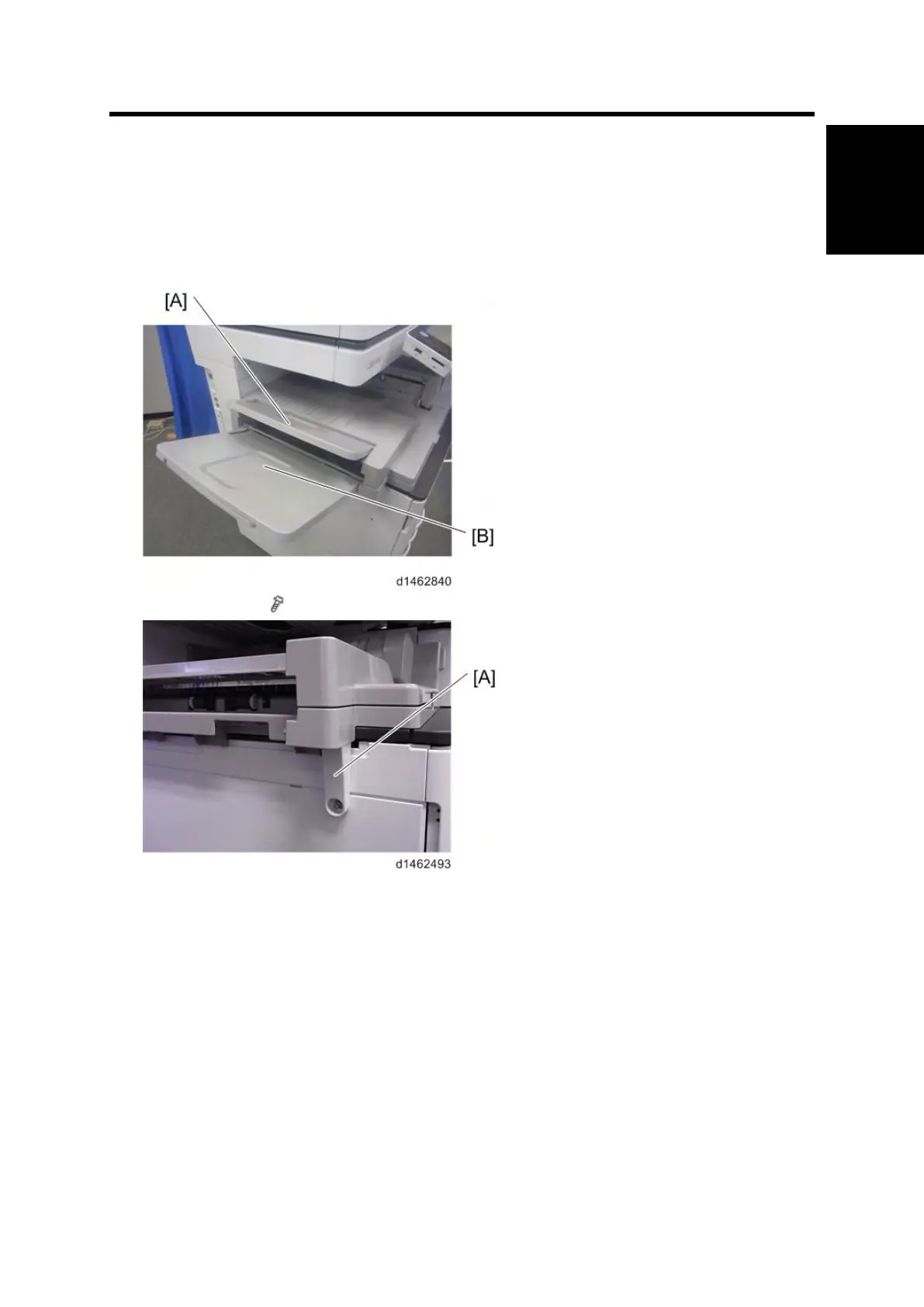

1. Upper extension tray [A], Left extension tray [B]

2. Fixing plate [A] (

×1)

3. Side tray [A]
