Transfer Motor

D695 14 SM

1.12 TRANSFER MOTOR

1. Motor unit ( page 13 "Lift Motor")

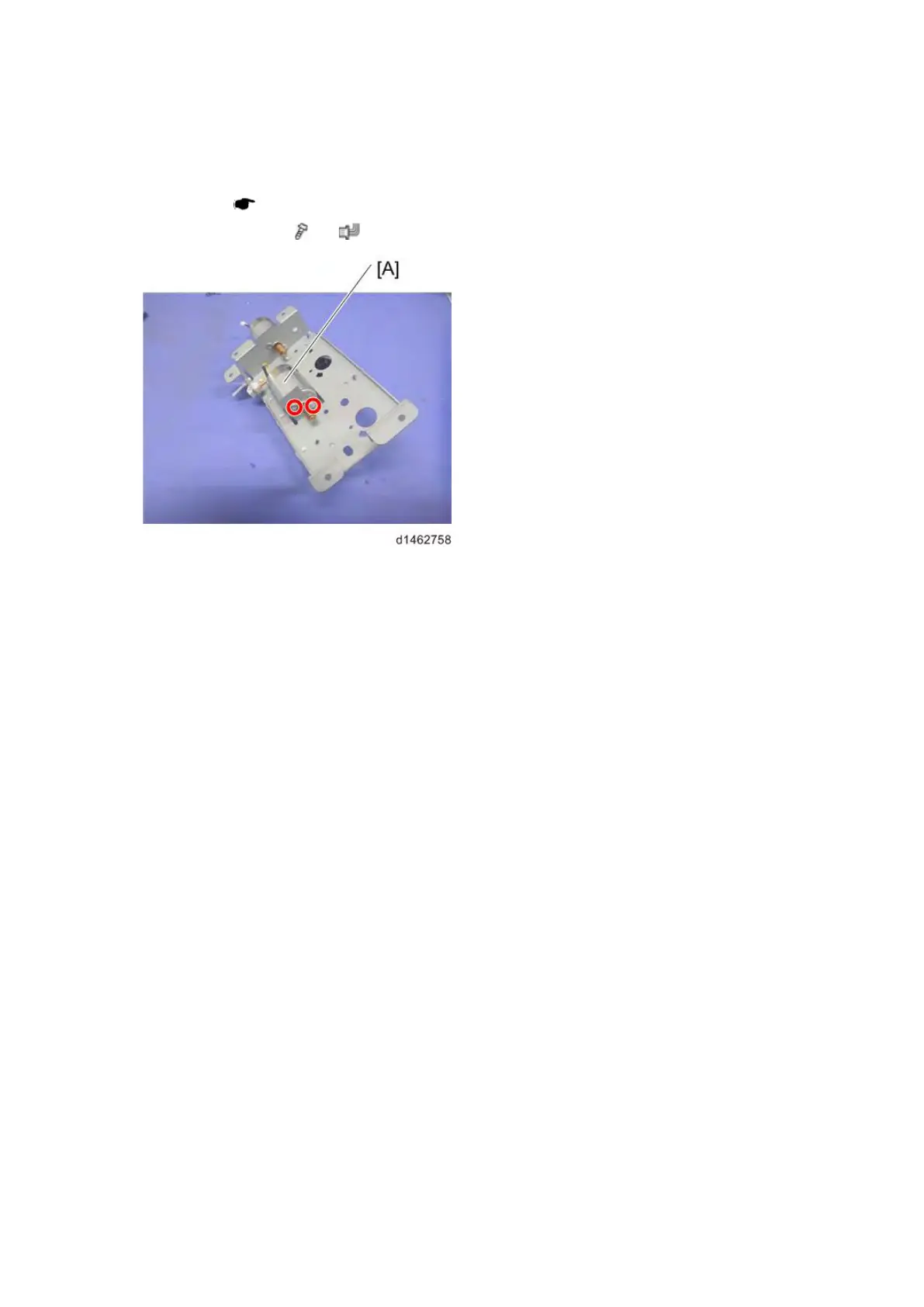

2. Transfer motor [A] (

×2, ×1)
