Ricoh D148 - Exposure Glass

Scanner Unit
SM 4-29 D146/D147/D148/D149/D150
Replacement
and Adjustment
4.6.2 EXPOSURE GLASS

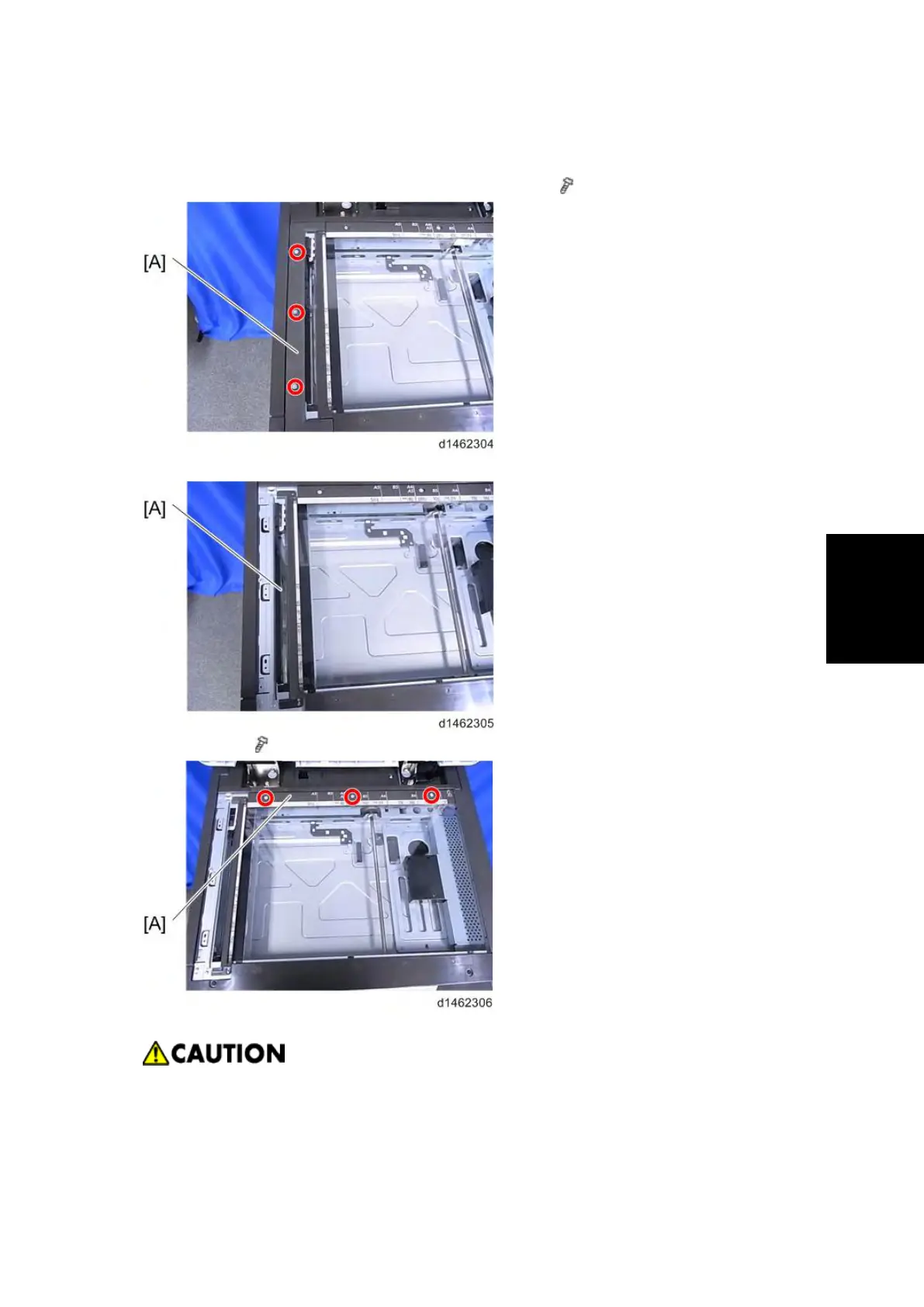

1. Open the platen cover or ADF, and remove the scale [A]. ( ×3)
2. ADF exposure glass [A]
3. Rear scale [A] (
×3)
4. Left scale and exposure glass [A]
§ The exposure glass and the left scale are attached with double-sided tape.
